My TOTeM project

[Qiaozhi]

dear friends.
after 2 week working on my totem pd i can test it on passive mode.
it work good with electromagnetic filed and ionic radiation devices.
at last test ( attached video) near the ferrite loop it can sense my watch tick tick and beep for each second changed.

http://youtu.be/Sdyxsla7lJc

but on active mode when i release the active/passive Switch to active mode red and yellow LED and the meter and buzzer turned to ON and by changing the active pot nothing happens
i changed position of ferrite and test it on each position please help me to calibrate may totem pd.
tanks

beast regards.

The ferrite coil adjustment procedure is on page 231 of ITMD.

[Saiman]

Hello Qiaozhi

Thank you very much for your Reply,please if you can help whit this photo

HELP ME
you have 4 switches, I saw
Why should the name of each switch
and how to connect with PCB

[Saiman]

HELP ME
you have 4 switches, I saw
Why should the name of each switch
and how to connect with PCB

Thank

[Qiaozhi]

HELP ME
you have 4 switches, I saw
Why should the name of each switch
and how to connect with PCB

See page 241 of ITMD.

[Saiman]

please fix

HELP ME
you have 4 switches, I saw
Why should the name of each switch
and how to connect with PCB

hi all friends. I hope all healthy.
I have a problem with the switch LRL TOTEM PD
see all photos in LRL Totem Pd forum, I made the decision. Switch probably like this
I really hope any help from friends forums.
to correct any that is not true.
Thank for all.

[mahinda]

please give me totem PD circuit diagram .please ,,,
my email mkmahinda@yahoo.com

thank you this mahinda

[Saiman]

help me

Next, I will build the casing, so that I can connect the Switches, Beeper, Potis und the 250 uA Meter on the PCB.

With a CAD program I have constructed a 3D model of the body, so I can make patterns for the cutouts and drill holes.
The casing itself is constructed as described in the book, only the handle I have been slightly modified.
I have from the 3D model made a 3D pdf. You can it download below.
You can open it with the normal Acrobat reader and it with the left mouse button rotate in all directions and turn as you like.
You can also hide and show parts, and zoom the model in and out.

Here are some pictures

hello Goldmaxx
happy reading, My totem project, you.
I really appreciate it. Thank you, with all the intimation you share
I am interested in this project, and the project was designed make my own totem.
Goldmaxx friend,
I have a little problem, please help me. I saw CASING TOTEM.PDF beautiful, and I've tried looking for a fail / CATIA 5, which should open the case totem 3d.pdf
You can order it at PRINT. But until today I still fail to open files that you 3d.pdf totem casing.
Goldmaxx friend, please give me your size of the casing, as I paint this picture

I really hope you help. "PLEASE"

-------------------------------------------------------------
Saiman - this is not the way to attach an image in your posts. Please select the Go Advanced button, and then use Manage Attachments.
All you have done is include a long list of gobbledygook, which I have just deleted.
-------------------------------------------------------------

[Goldmaxx]

Hello Saiman,
Thank you that you like my "Totem Project".
You can open the 3D pdf, only with Adobe Reader.
Then you must one time click the left mouse button on the window with the casing and then you can rotate, measure, hide parts, and make it visible again.
That's easy.
You don`t need Catia 5

Here you can download a drawing. That are my size, but that does not mean that you must have the same size. Particularly the distance of the coil.

For all other questions, I can only quote Qiaozhi. "See page 241 of ITMD"
That applies for everyone else too. And please send my no more PN´s obout questions, there answer are in Qiaozhi's and Karl`s book.
I respect Qiaozhi's and Karl`s work and bought the book too.

Regards

[elvoney]

Hi Goldmaxx. I really enjoyed the project and congratulations for the excellent work. I would like to know if after the implementation of the project it has achieved some success in the field and if TOTeM has fulfilled its purpose. Do you have any videos working with the device? Thank you.

[HaFar2010]

Hi Goldmaxx. I really enjoyed the project and congratulations for the excellent work. I would like to know if after the implementation of the project it has achieved some success in the field and if TOTeM has fulfilled its purpose. Do you have any videos working with the device? Thank you.

Hello,
Dear All.
Finally, i was able to build a correct PD. In the following, you can see their videos, which has sent by my clients from a ancient grave.

https://www.youtube.com/watch?v=HYhp1b8LqP4

https://www.youtube.com/watch?v=glYeB84xJkM

[pigeon]

hi

Hello,
Dear All.
Finally, i was able to build a correct PD. In the following, you can see their videos, which has sent by my clients from a ancient grave.

https://www.youtube.com/watch?v=HYhp1b8LqP4

https://www.youtube.com/watch?v=glYeB84xJkM

hi HAFAR

please your projet it is free

thank you

best time

[AurumKid]

hafar,

please post actual recoveries using your pd.

do you have modified circuit to show us?

[HaFar2010]

Hello
Dear all.
Some time that several questions have engaged my mind and i haven't a clear answer for them.
So i decided to share the questions in the forum, and ask you to consult together.
the questions is as follows:

1- What is the quickest trick for producing magnetic field of gold? How long does the trick take?

2- As you know, PD has reaction than power flow, TV and low-power light.
So question that rises here is that which of them is the best test for PD?
Other words, which of the tests has most similar to gold?

3- Why does all LRL, which work base on ferrite, has reaction than low-power light?

[HaFar2010]

Hello
Dear all
we have done a test for detection of a freshly ring. In the text, the machine is able to detect the gold in 20 cm distance.
You can download the video from the follow link.
Please share your opinion.

http://s000.tinyupload.com/index.php...68664812190874

[elvoney]

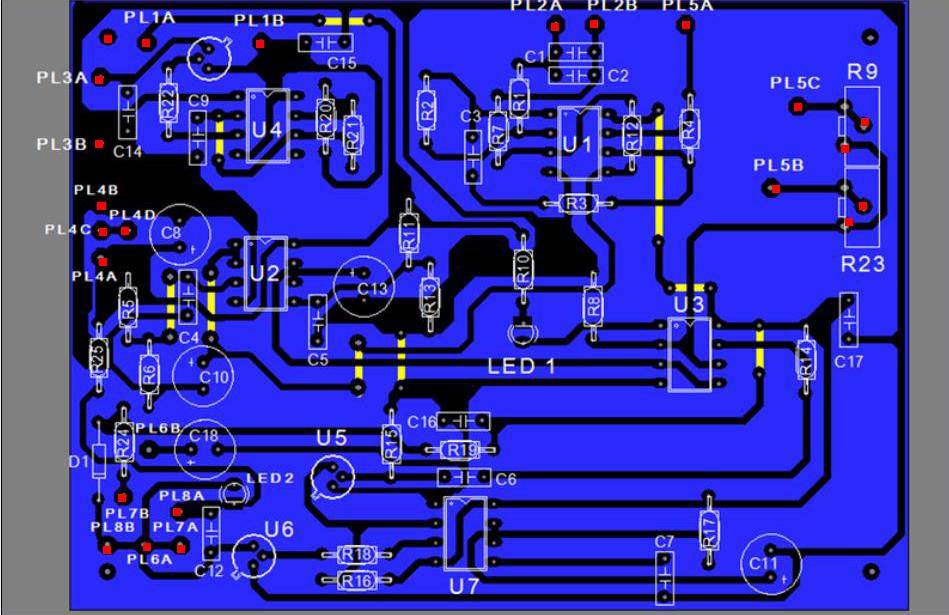

I'm doing my TOTeM and I used this PCB but it gave an error, by verifying the original scheme I realized this. I would like to know if someone uses this PCB. Thank you all.
