Mineoro DC2008

[Jeg]

Sorry bro. This circuit never published. Check your messages.

[Dubulumach]

Jeg thank you.
Now there is n't reason. I have construct most of the existing schematics so now there isn't reason for the schematics. The years gone... and now no mood for constructions, also no mood for T.Hunting...

btw.... maybe a trip to "Φουρνους" for fishing to give me energy

Hey Geo

Don't bother yourself to much. It will be good days for yours T.Hunting. You had have done more than 30 lrl's i have seen in your lab and all works - some are the best with special ferrite, some excellent like PD clone, others are normal and could do a job - a lot of small yellow coins.


Regards from the mountains.

[Geo]

Dragan i don't worry!!!
The best treasure is the health!!!

[brain]

hello what is the transformer value primary 380uh secondary value in geo diagram?

Picture below

https://ibb.co/qdxCSXH

[Jeg]

i will connect a switch in series with "ion champer" so to ensure when it detect an object, what is this that locate it, the ion champer or the passive receiver or both.

Hey Geo
What is your final conclusion on this? Detection happens through the loops or through the chamber?

Oscillation at the input of the receiver is too high as you have already seen. So it looks like that the signal coming from chamber is negligible and probably doesn't contribute as much as i was thinking!! I was ready to connect a switch so to separate the two circuits, but then i saw that you have already done it! (as always!!!)

ps. Does anyone know the exact length and diameter of the brass tip at the chamber circuit?


Regards

[Geo]

hello what is the transformer value primary 380uh secondary value in geo diagram?

Picture below

https://ibb.co/qdxCSXH

Try to make 2mH for secondary and wind one turn for primary.
Permability must be bigger than 400 (2000 is very good).

[Geo]

Hey Geo
What is your final conclusion on this? Detection happens through the loops or through the chamber?

Oscillation at the input of the receiver is too high as you have already seen. So it looks like that the signal coming from chamber is negligible and probably doesn't contribute as much as i was thinking!! I was ready to connect a switch so to separate the two circuits, but then i saw that you have already done it! (as always!!!)

ps. Does anyone know the exact length and diameter of the brass tip at the chamber circuit?


Regards

From my experiment detection happens through the loop. Maybe the brass tip works as antenna for electric field detection!!! (maybe).

[Jeg]

From my experiment detection happens through the loop. Maybe the brass tip works as antenna for electric field detection!!! (maybe).

Thank you Geo. Your experience is valuable.
Yes it is for electric field detection but everything show it doesn't work as intended. Mineoro failed at this point.

[brain]

Try to make 2mH for secondary and wind one turn for primary.
Permability must be bigger than 400 (2000 is very good).

Is it possible to draw as a picture?

[brain]

Here is the schematic from the receiver of DC2008. For begining there are not values of the components but i work for it and for the full schematic.

Enjoy

Ok, I found the answer to my question.

[Geo]

What you don't understand????
First buy a Pot Core with permability near to 2000.
2nd.. on it wind L1. L1 must have inductance 2mH. Wire has 0.2mm diameter.
Up on this coil wind one turn and connect it with big loop. This turn must be near to 1mm diameter.

That's all

[brain]

What you don't understand????
First buy a Pot Core with permability near to 2000.
2nd.. on it wind L1. L1 must have inductance 2mH. Wire has 0.2mm diameter.
Up on this coil wind one turn and connect it with big loop. This turn must be near to 1mm diameter.

That's all

thanks geo.

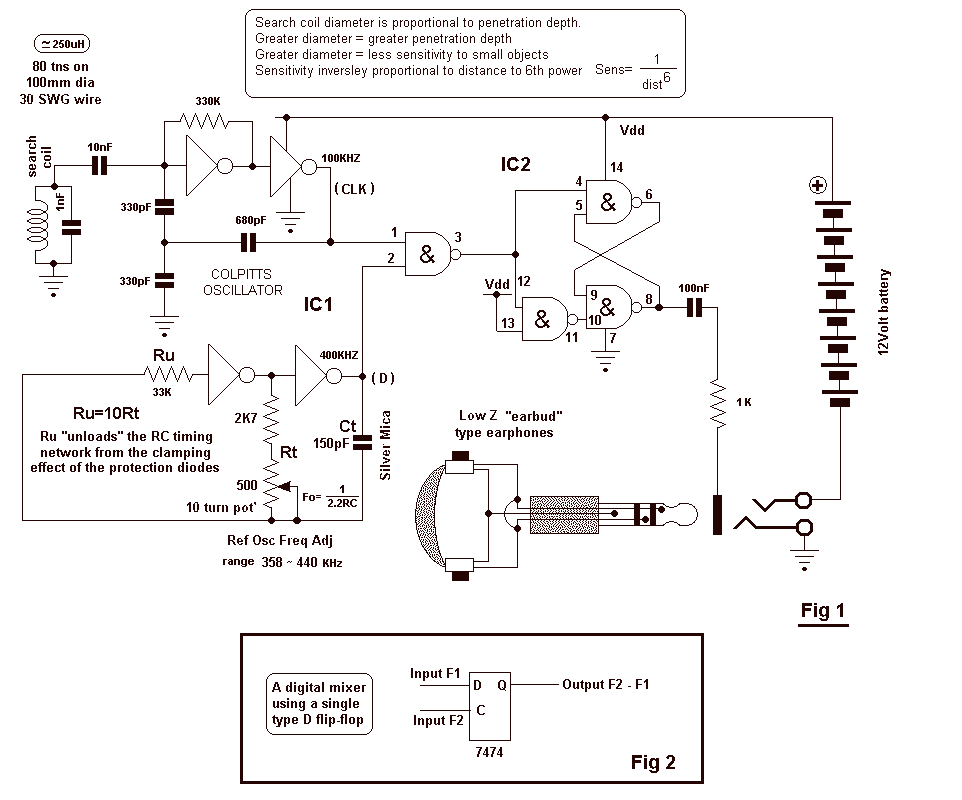

I have a nice schematic like this and you will like it. Frequency controlled. Between 15khz and 36khz.
I published some of it.

[brain]

hello geo
Can we adapt this logic in dc2008 to this circuit?

[Geo]

No, this is a simple BFO and has nothing to do with the first stage of Mineoro or with the working principle of a lrl..

[Jeg]

Yes it is for electric field detection

Actually an electrostatic charges detector. If someone rubs a pvc pipe with a cloth, device will beep.
