Gold Gun AL718

[ishtar hunter]

Hi to all
Does anyone have a schematic of the gold gun AL 718 transmitter? This receiver works well but i don't have the original transmitter and my transmitter does not match well with Receiver.
please help me.

[WM6]

Hi Ishtar, how do you expect that original transmitter will work better than yours?

If transmitter is tuned at the same frequency than receiver, then all is ok.

But probably you transmitter emit too much power, or you put it to close to receiver and so transmitter signal suppress all other useful signal. Al718 works on very long wave and need distance to proper wave polarization. You need very weak transmitter and antenna that can be oriented in all directions to get proper wave polarization. Even so transmitter should not be to close to receiver. Play with this, rather than asking for original transmitter which will not solve your problem.

[reza vir]

Hi to all
Does anyone have a schematic of the gold gun AL 718 transmitter? This receiver works well but i don't have the original transmitter and my transmitter does not match well with Receiver.
please help me.

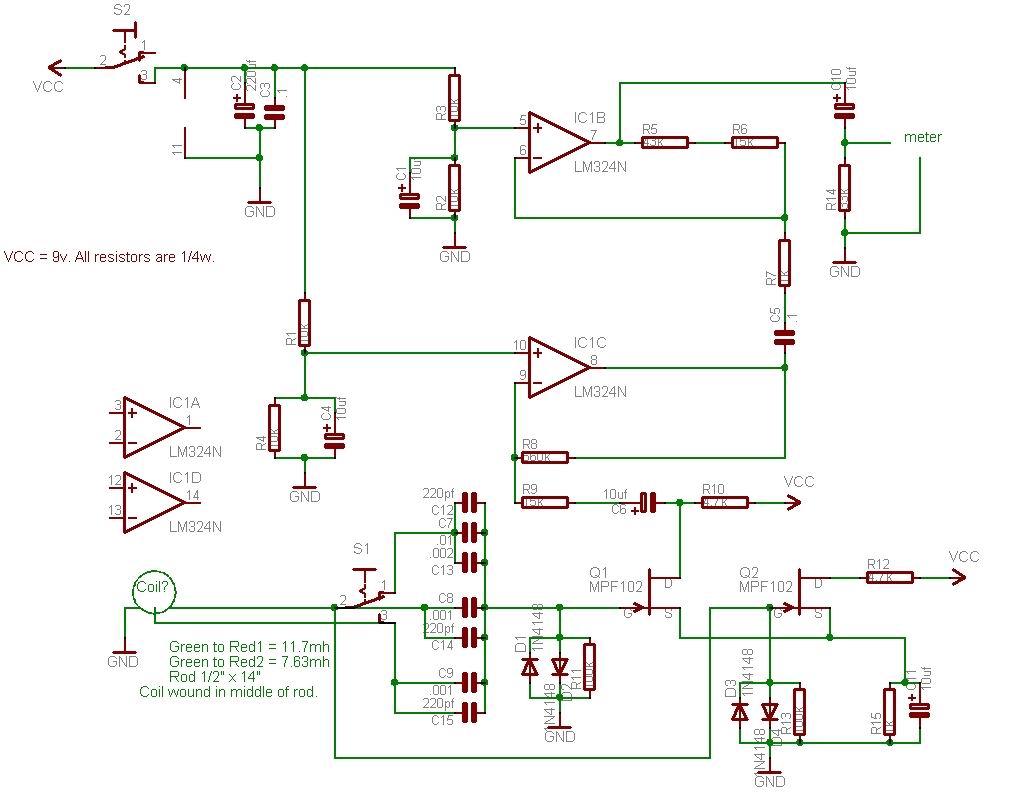

see this circuit

[Geo]

This schematic is wrong....

[ishtar hunter]

DRAGON 5

Hi Ishtar, how do you expect that original transmitter will work better than yours?

If transmitter is tuned at the same frequency than receiver, then all is ok.

But probably you transmitter emit too much power, or you put it to close to receiver and so transmitter signal suppress all other useful signal. Al718 works on very long wave and need distance to proper wave polarization. You need very weak transmitter and antenna that can be oriented in all directions to get proper wave polarization. Even so transmitter should not be to close to receiver. Play with this, rather than asking for original transmitter which will not solve your problem.

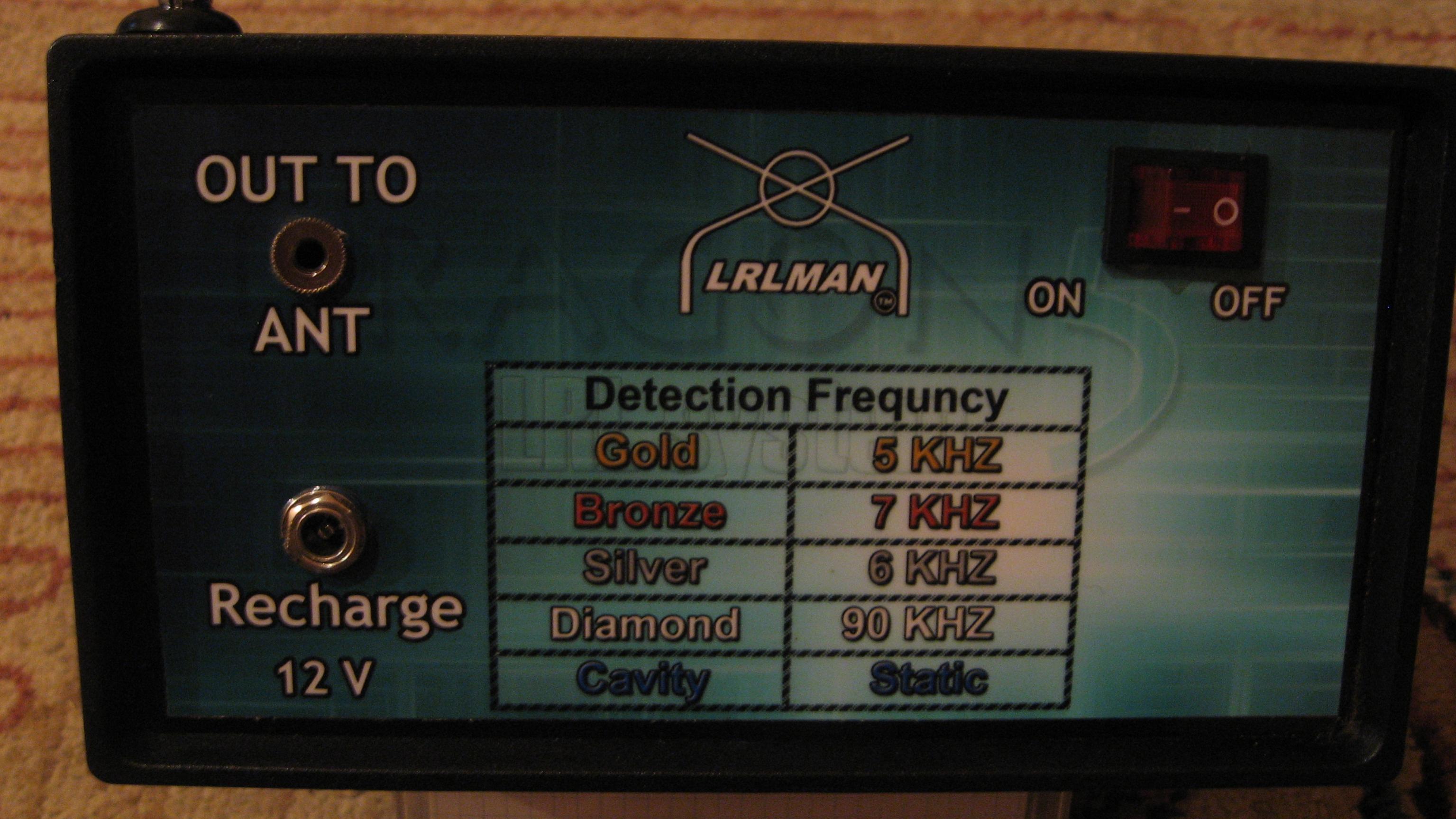

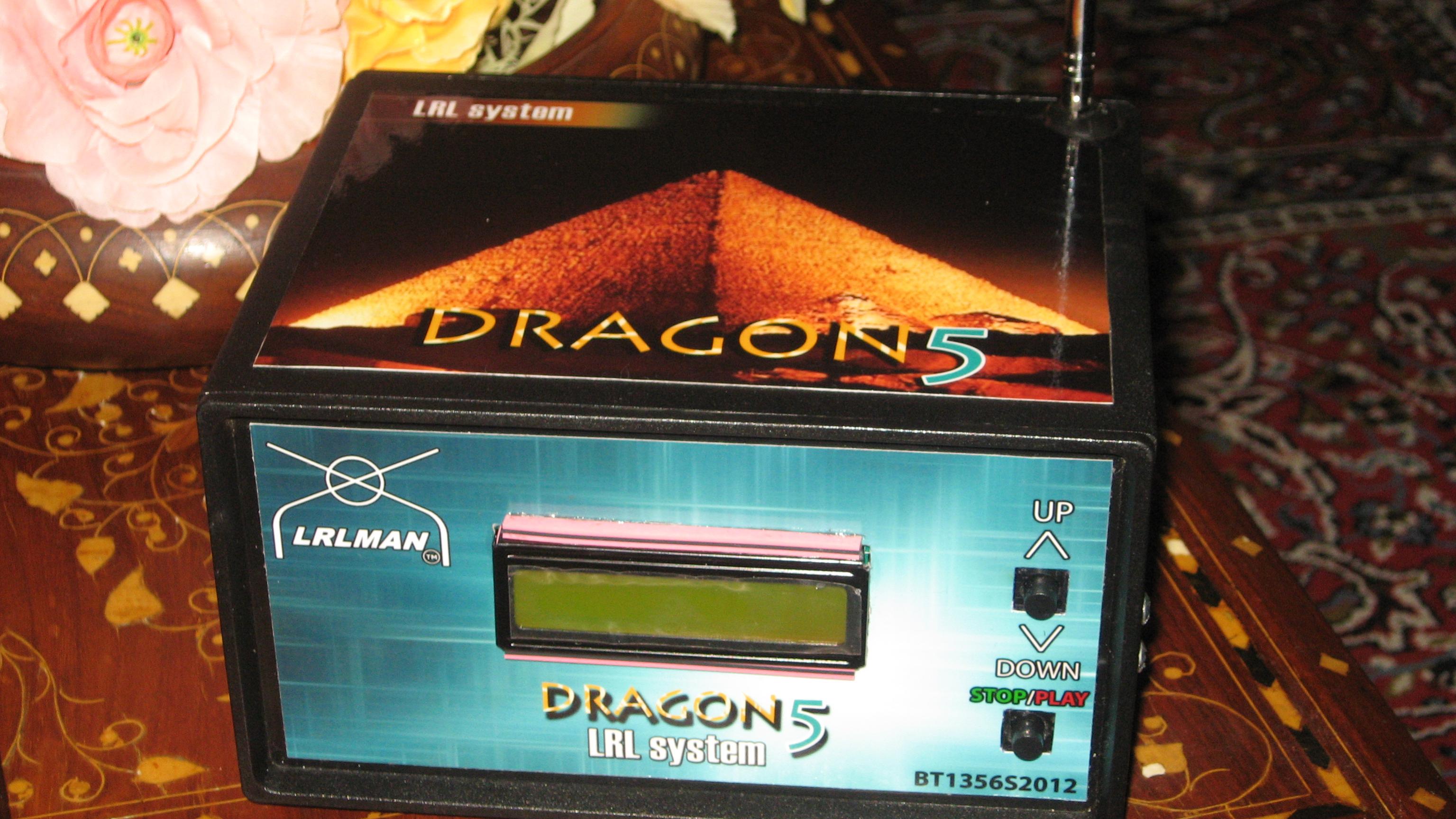

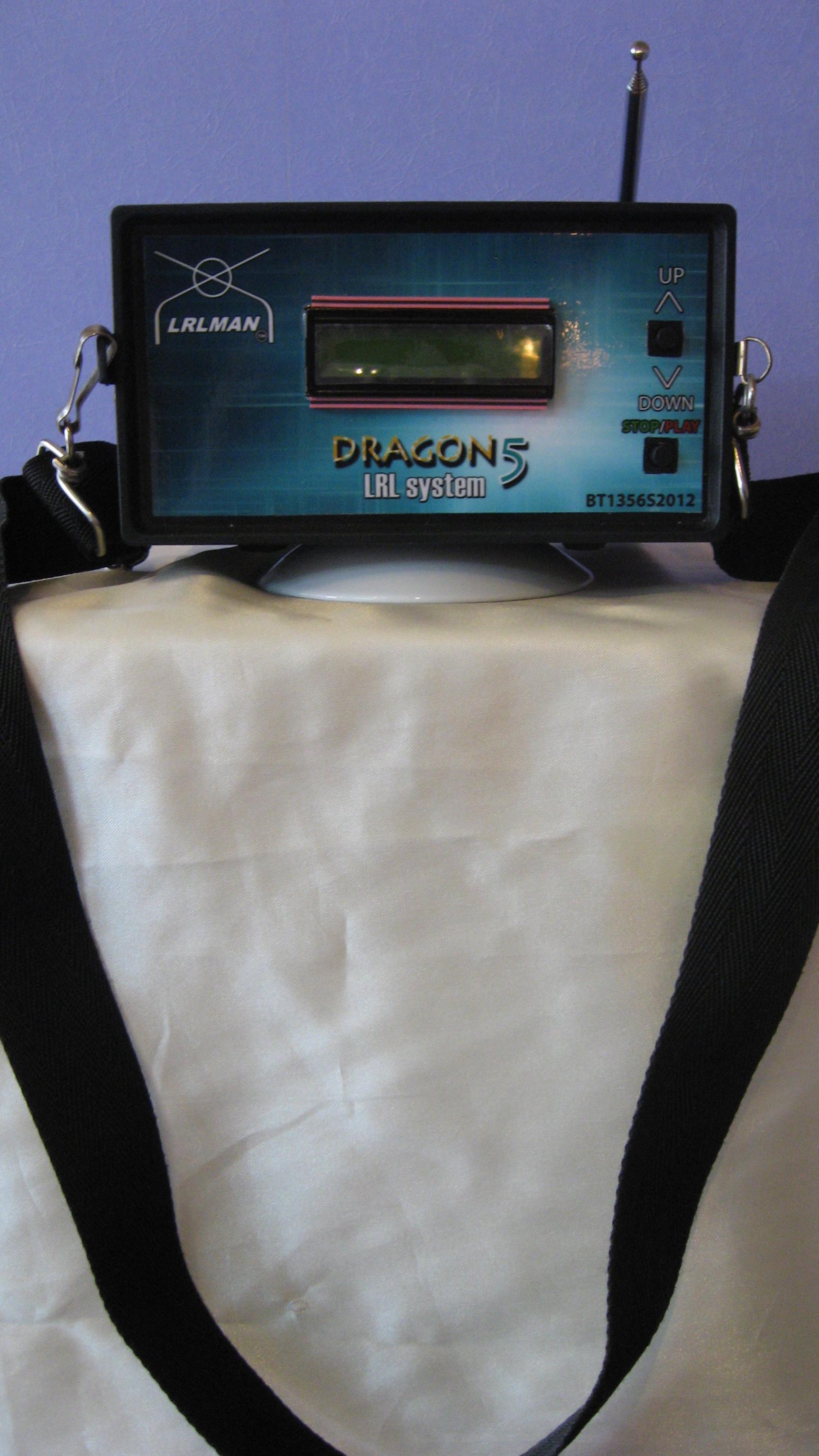

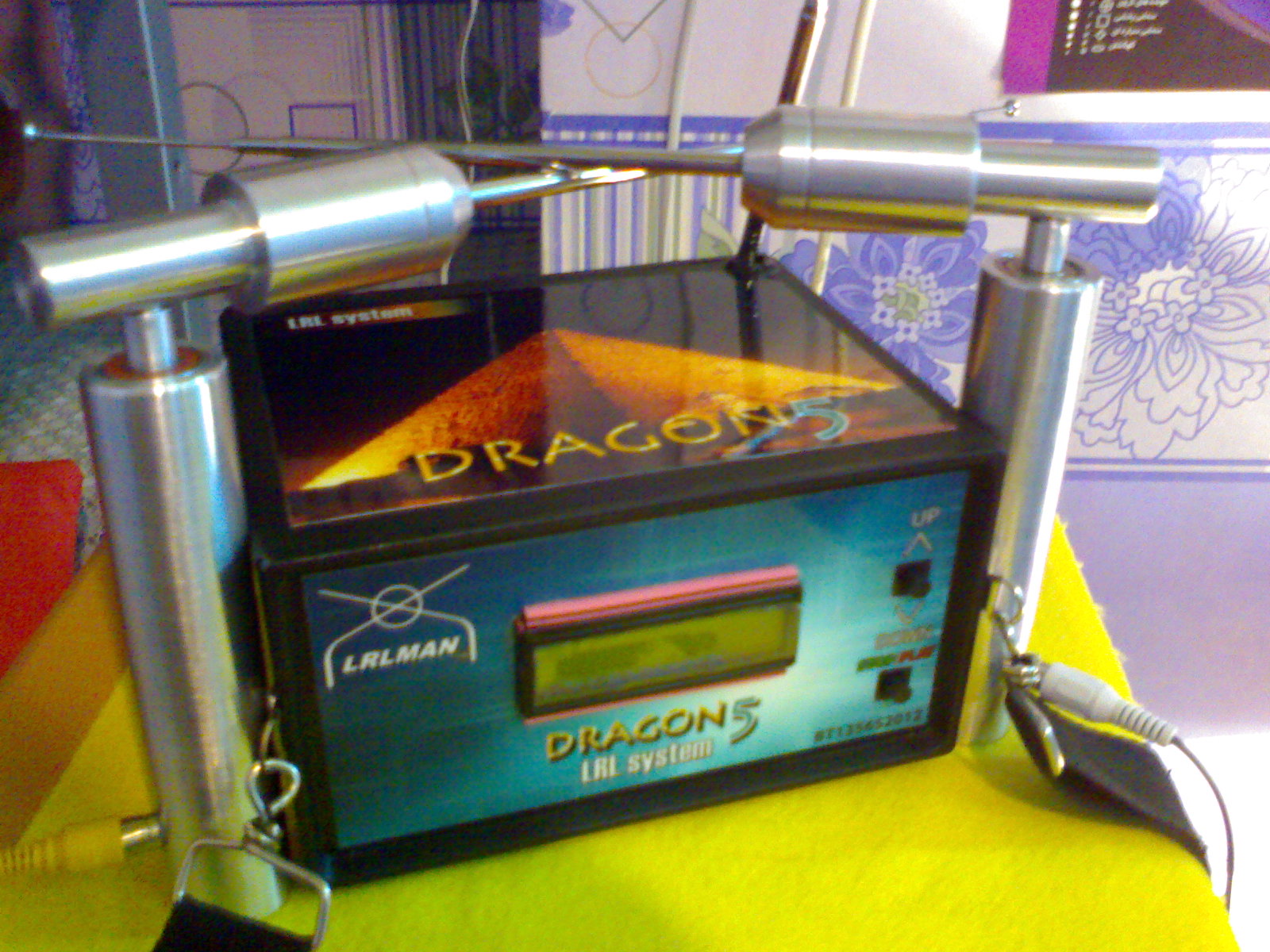

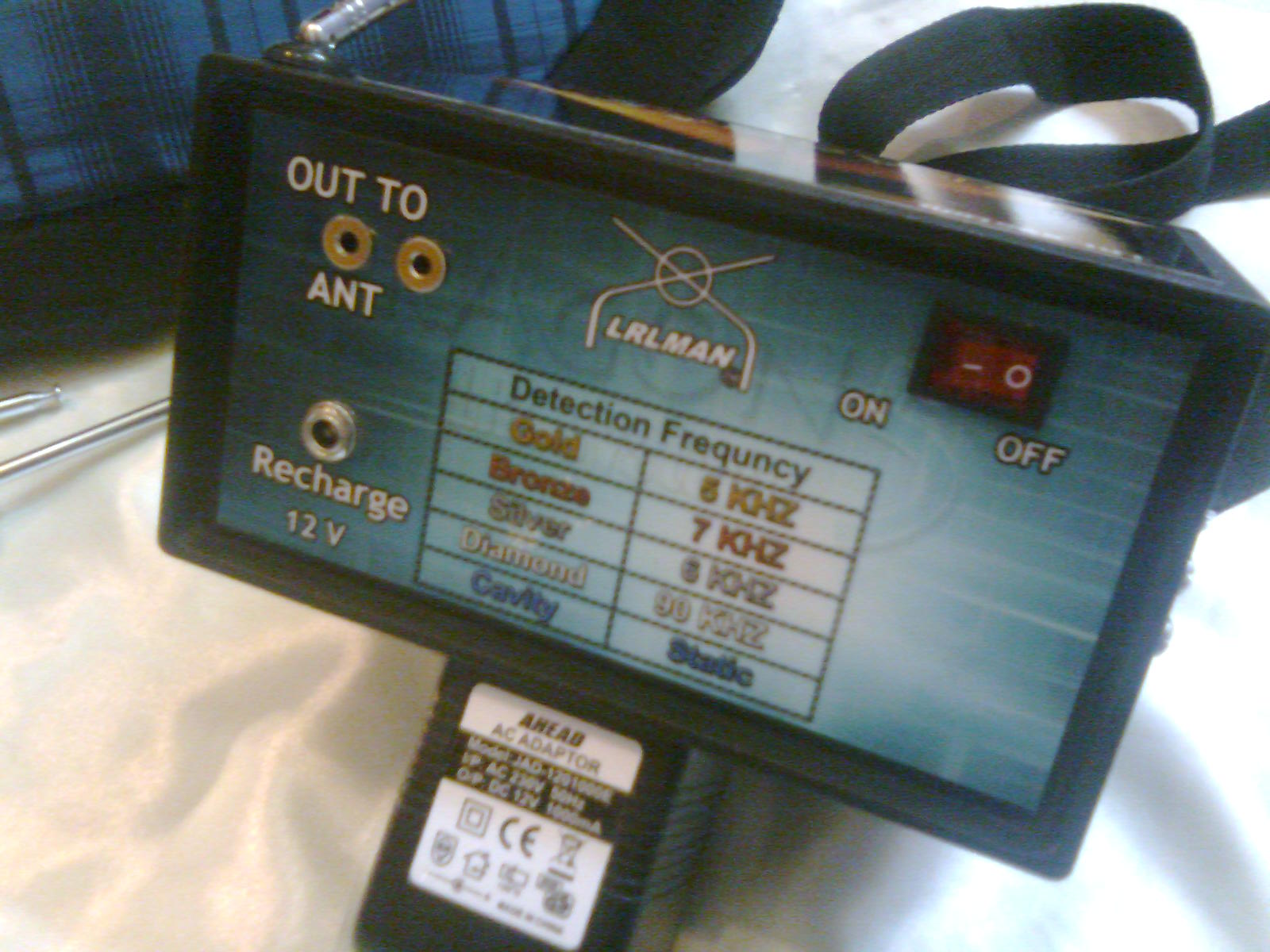

Hi wm6 thank's so much .i attach my home made lrl picture and Operating frequency. this lrl work very good .i can find void and i dig so find void but in 5 khz for gold(I had adjust for Gold) in my Country(iran) this frequency detect iron . when i detect so dig i find iron so i change to 118 khz for gold and this problem was solved . voltage for gold is 6 volt on 118 khz -this detector can operate for gold 118 khz -silver 6khz-bronze 7 khz - void- diamond 90 khz. main voltage is 12 volt and all Output frequencies are stable and does not change during the search . I've used a bunch of aluminum with Bearings to connect antenna.(Sorry Tim Williams for the use of their logo).

[goldfinder]

Ans on gold freq getting iron

In my chart of the elements where I derived the frequency the frequency of 5 khz for gold is very close to the frequency of one of the oxides of iron as both have close to the same atomic weight. Frequency is directly correlated with weight. The 118 khz is an upper harmonic if gold and far enough away from the upper harmonics of iron oxide that you can use it.
Goldfinder

[ishtar hunter]

In my chart of the elements where I derived the frequency the frequency of 5 khz for gold is very close to the frequency of one of the oxides of iron as both have close to the same atomic weight. Frequency is directly correlated with weight. The 118 khz is an upper harmonic if gold and far enough away from the upper harmonics of iron oxide that you can use it.
Goldfinder

Thank's my friend

[Tim Williams]

That's one fancy lrl. You know people well think I made that unit with my logo on it.

Tim

[reza vir]

In my chart of the elements where I derived the frequency the frequency of 5 khz for gold is very close to the frequency of one of the oxides of iron as both have close to the same atomic weight. Frequency is directly correlated with weight. The 118 khz is an upper harmonic if gold and far enough away from the upper harmonics of iron oxide that you can use it.
Goldfinder

very thanks my dear

[Geo]

Hi.
Does anyone has the schematic from the audio (amplifier lm386) of AL718 or Al707???


Regards

[reza vir]

Hi.
Does anyone has the schematic from the audio (amplifier lm386) of AL718 or Al707???


Regards

do you think this schematic ???

[reza vir]

LM386 datashet

[Geo]

LM386 datashet

Thanks but i need the exactly (original) schematic of the audio amplifier from GG.

[dojranski]

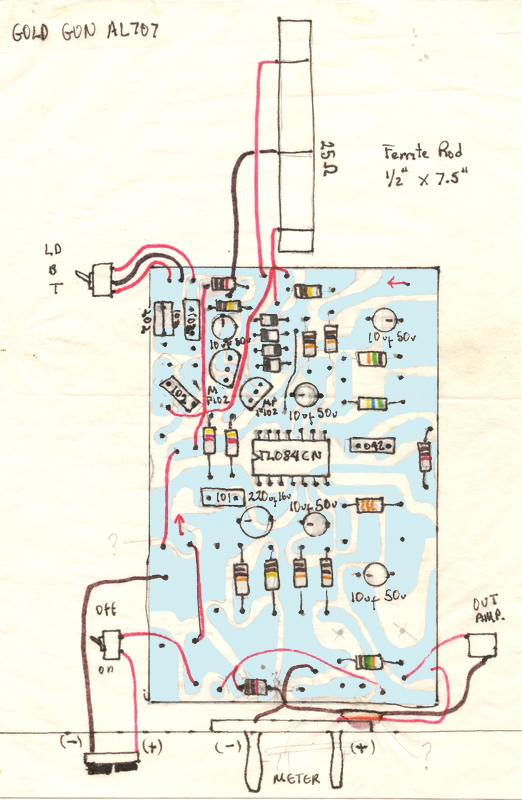

Geo This is the original scheme gold gan al 707 ..
if you can help

http://s14.postimg.org/lsuvmck00/sema_4.jpg

[dojranski]

Geo This is the original scheme gold gan al 707 ..
if you can help

http://s14.postimg.org/lsuvmck00/sema_4.jpg

http://s8.postimg.org/g5h5jtiic/IMG_0918.jpg
