Is necessary that the name of transistor bc548 end with a letter C ?

[ASHIL]

Hello my frinds
Is necessary that the name of transistor bc548 end with a letter C ?

Hi my friend
For best result yes necessary to use C class transistor because have higher (hfe)
Good Luck

[sakher]

so.. can i use bc173c instead of bc548c because i dont have it .
thank you my frind

[dojranski]

so.. can i use bc173c instead of bc548c because i dont have it .
thank you my frind

BC 548 SILICON .NPN TRANZISTOR 50V,0,1A,0,5W 300mhz
REPLACEMENT BC 168 / BC 183 / BC 238...

[abdou2014]

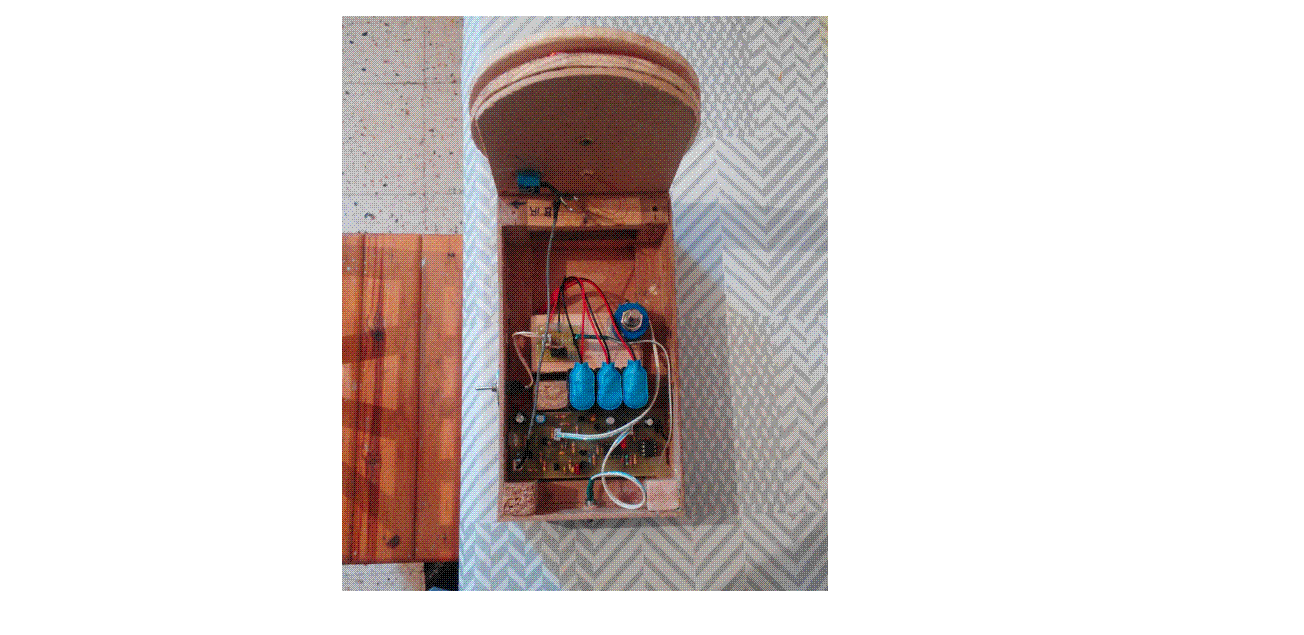

MY NEW PDK

[Golden]

Nice job!
What results do you have?

[abdou2014]

I can not test it now, it's snowing

[GOLDEN LILLY]

congrats Abdou for your PDK...Your pcb seems familiar...Good Luck!!!

[abdou2014]

Thank you my friend

[Nicolas]

Thank you my friend

The look is very nice my congratulation

https://www.youtube.com/watch?v=3sSlZF9-KjY

https://www.youtube.com/watch?v=-z-dNMMNN2s

You can find there more details in Arabic language

[abdou2014]

Thank you my Brother, I'm glad you came back to the forum

[abdou2014]

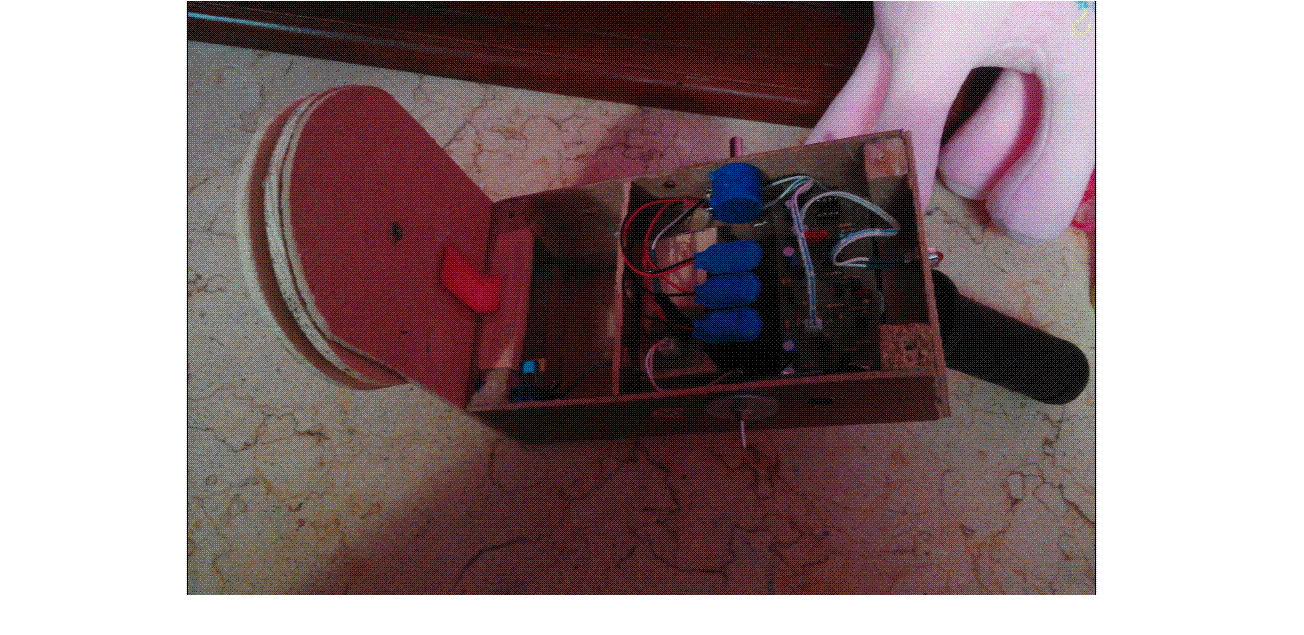

Hi everyone, I did test with my PDK and I want to have your opinion because I do not have much experience with it ,
I had a compass effect but the LED lights up on east and west direction , is this result positife?

[GOLDEN LILLY]

Compass effect is present when the lrl is at maximum sensitivity. This is normal for an lrl. Lower the sensitivity and search from north to south direction. If compass effect still present even you lower the sensitivity, try another coil like changing coil thickness to smaller size. Big coil wires is susceptible to receive stray electromagnetic feilds including lightning discharges a hundred miles away and that what happens to my pdk.Changing wire thickness will do the trick.

[abdou2014]

The compass effect is only in the east-west direction, and when I reduce the sensitivity it disappears, the coil measures 10 cm .
how to work with the PDK, make a horizontal or vertical movement or just facing south without moving hand ?
