Inside Mineoro210-part1

[Alexismex]

Hello Forum some month ago I tell you ,i will show you the INSIDE of the famous CDM210, without pro o con comments , I wll trace the board also in time, the main board was potting , it take me 3 hours to unpot and see the inside no big electronics just a micro Atmel and some transistors ,nothing relevant ...and for the final of the show I reconnect the unpotted board etc... and test ....oufff the board was working , for the second phase i will test the signals .... and trace the board with the denomination of each components ...for now I do not destroy the SENSOR for testing back , later I will open it to see inside ...Have a nice looking from photos.

[Alexismex]

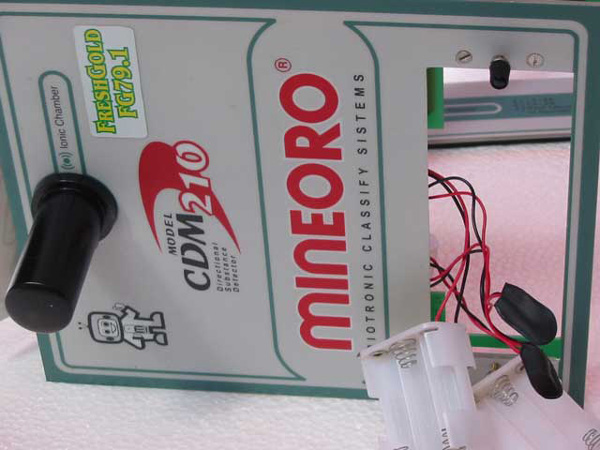

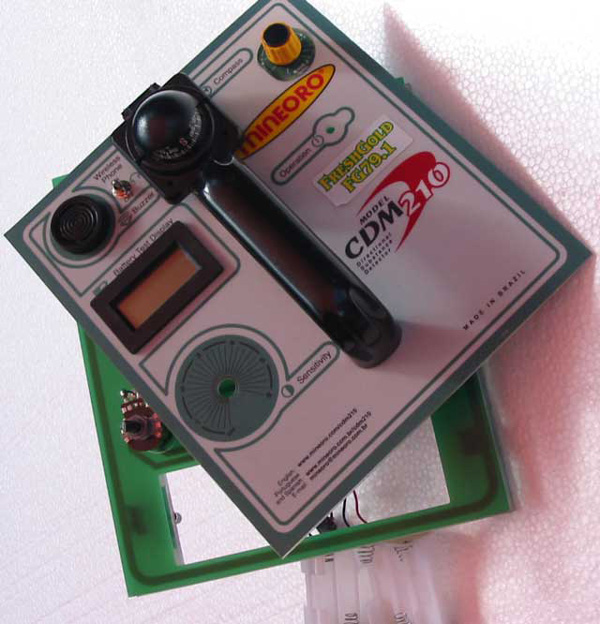

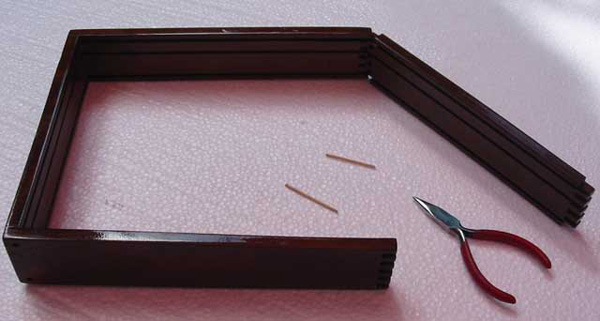

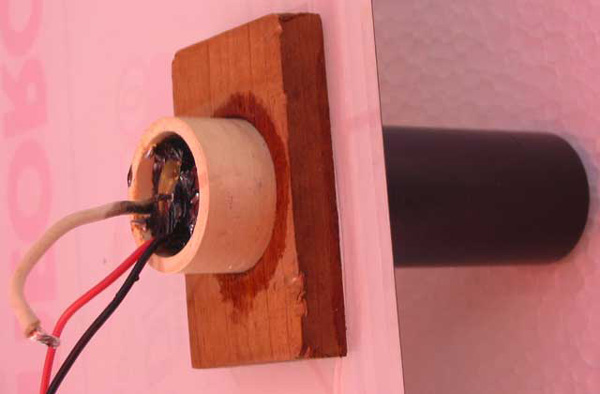

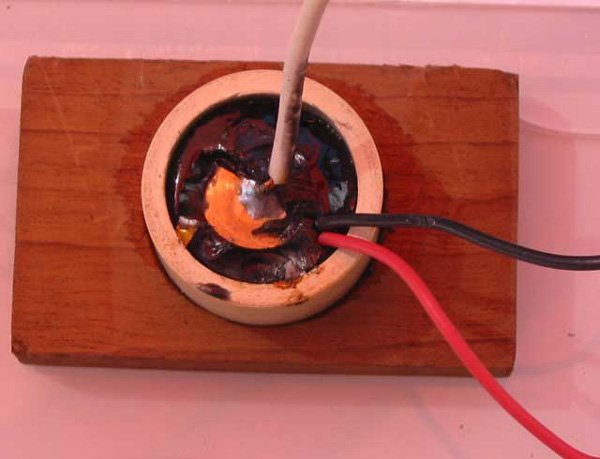

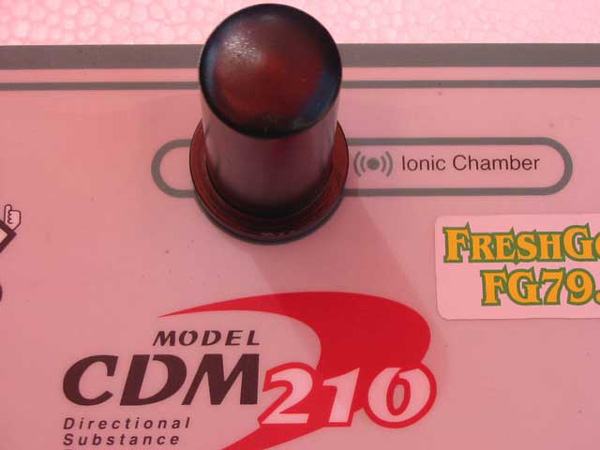

photo part 1 showing Mineoro front, back, wood box,sensor 1,2,3

[Alexismex]

photomineoro2

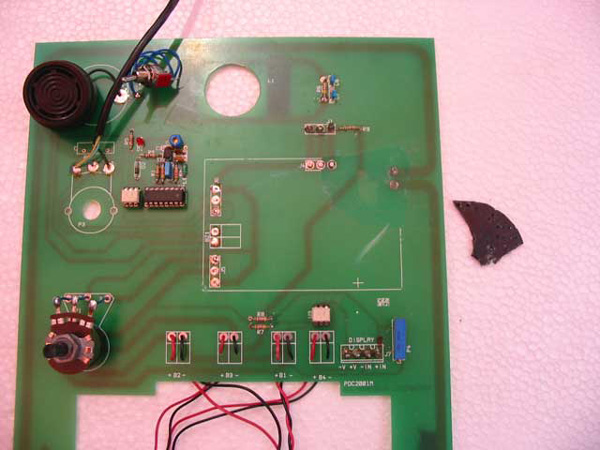

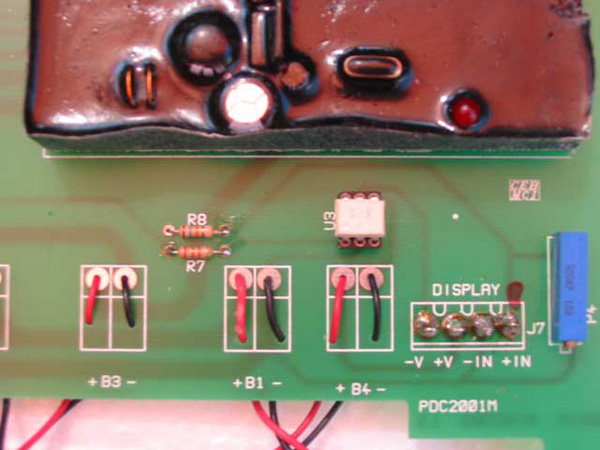

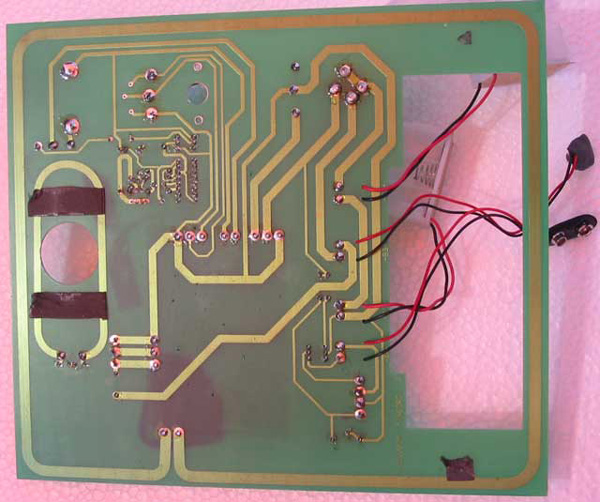

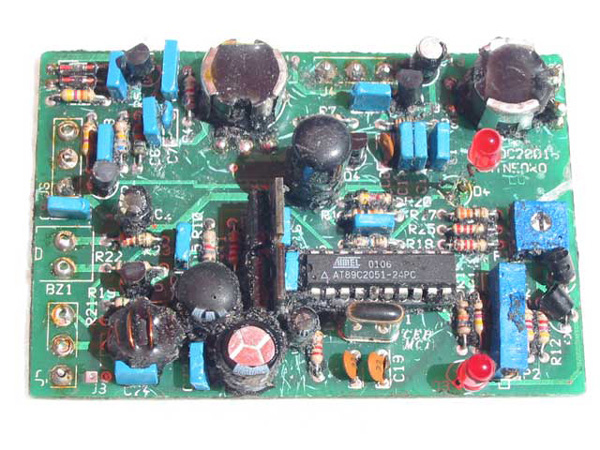

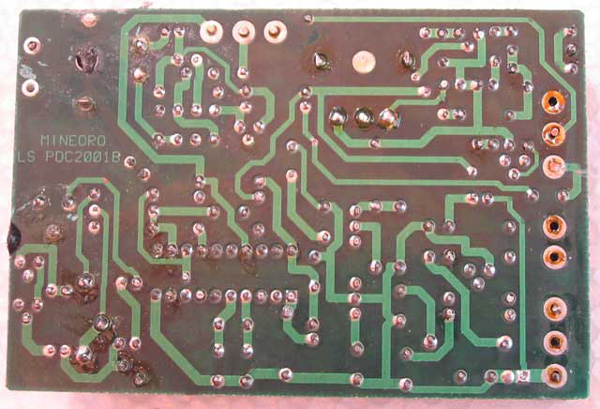

Photo of the principal board,front and back

[Alexismex]

photomineoro4

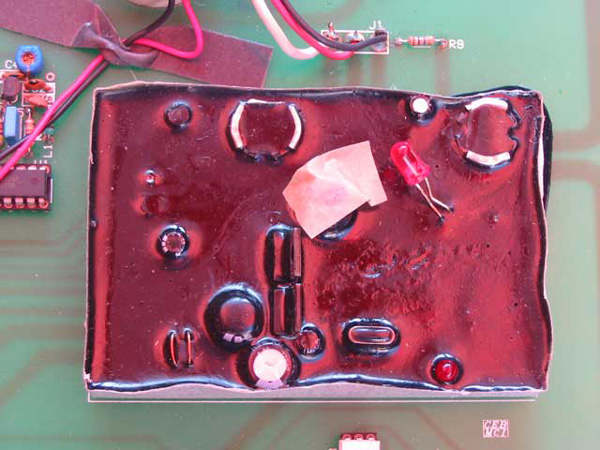

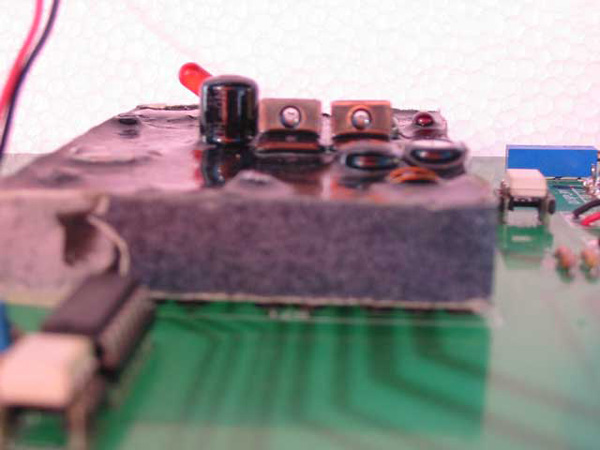

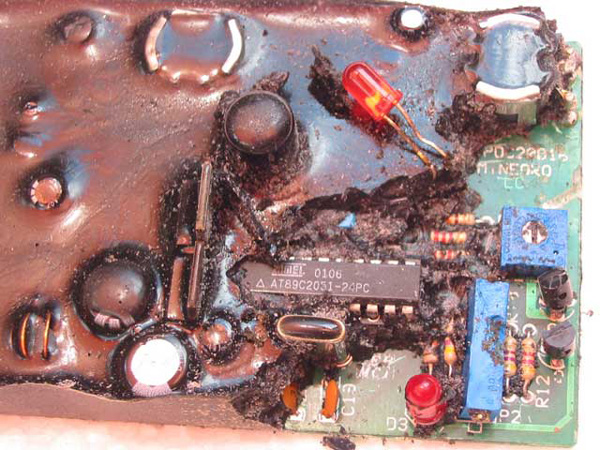

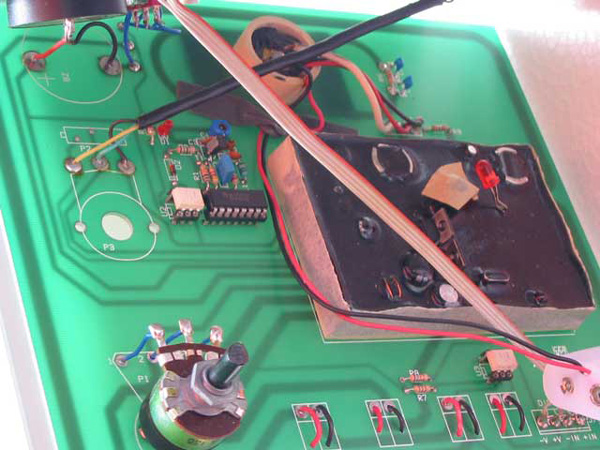

photos of the main board and small pottingboard

[Alexismex]

photomineoro5

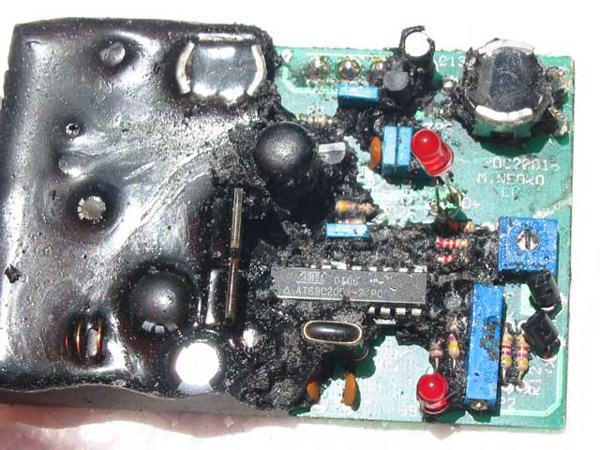

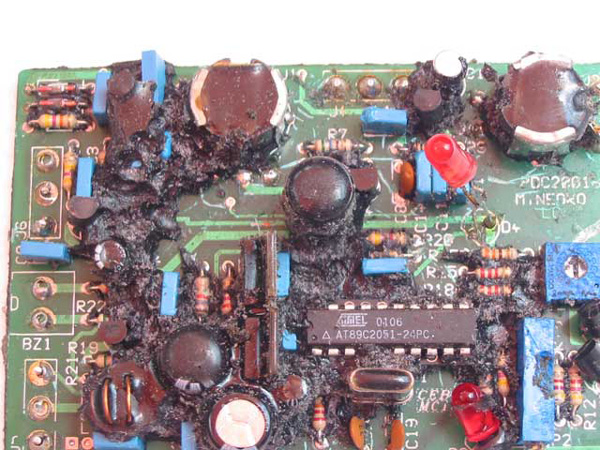

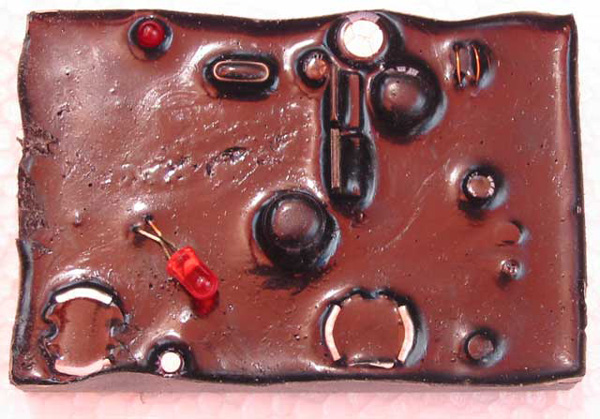

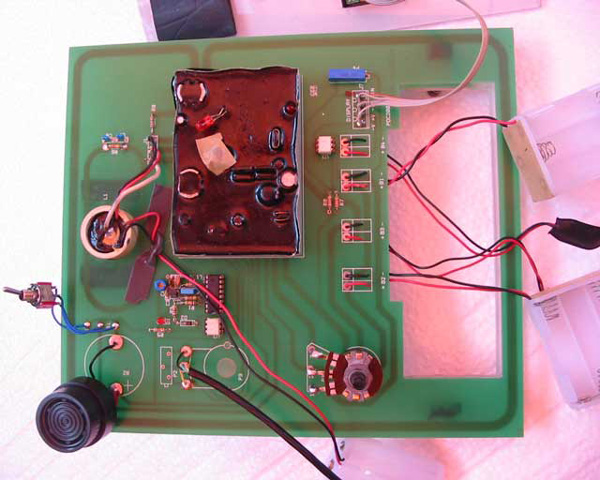

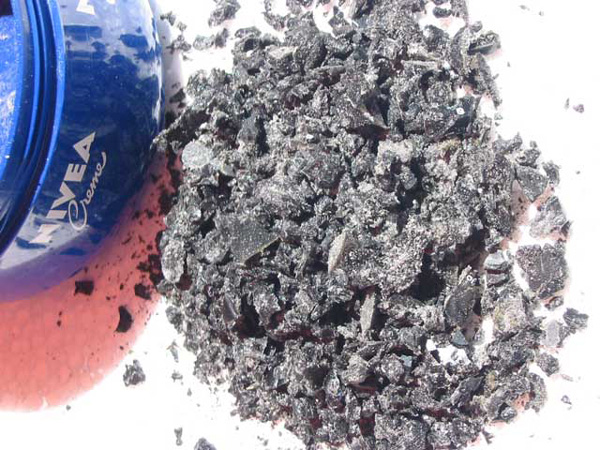

no man's land,removing the potting

[Alexismex]

photomineoro6

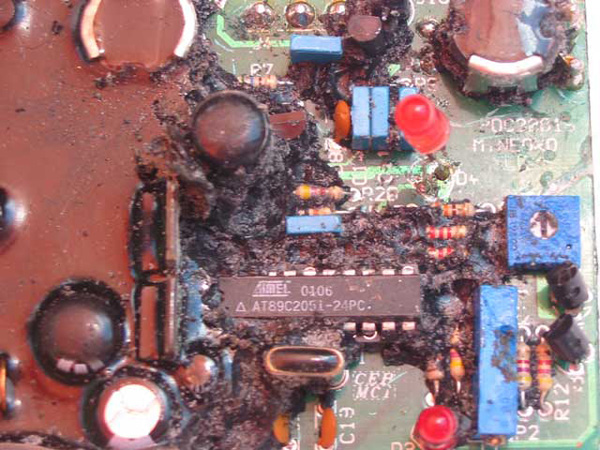

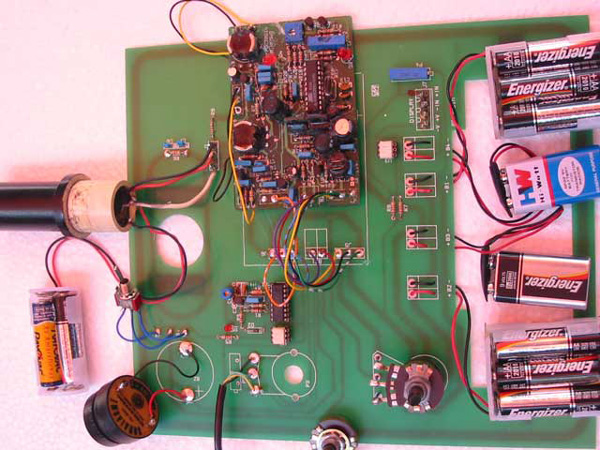

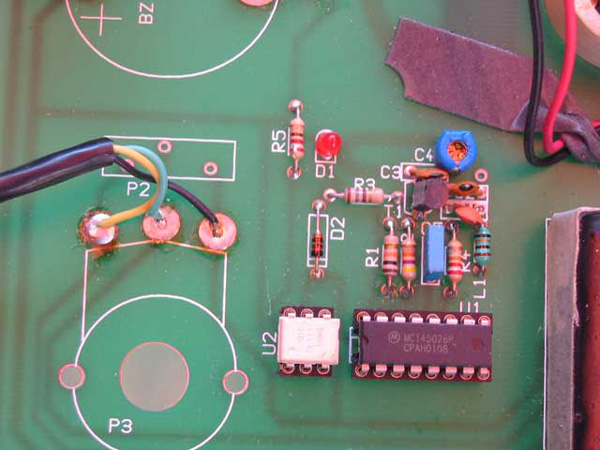

testing the board after all the removing work....OK showing the nonlethal protection...

[Geo]

Congratulation

Hard but very good work . Congratulation .If you will trace the board we wait for schematic.
Best regards

[Geo]

Mineoro.........

The fable little by little falls

[Carl-NC]

I'm interested in the sensor, as I was not allowed to open it on the PDC205 I was loaned. Also want to know... does it detect gold?

- Carl

[hung]

You people are so amusing almost as child like.
See, characters like this Alexis only contribute in raising our reputation as demented as THr's.
Do you all pay for a new car for instance and then open the engine just to see how the pistons, cylinders, etc. look like?
If you are one like that, sorry pal you should be in an asylum.

This particular model was a short lived model pre fg78. It works but it's much weaker in terms of detection power in relation to the FG79 and 80. It's even weaker than the PDC 210. It was a necessary step towards the completion of the FG series.
It's got an 'Atmel' microcontroler which is not used anymore. The new series don't need it and in fact have more advanced concept.
But again fellows, despite of that this model works (don't know now after open) but it cannnot be replicated. You can assemble it piece for piece. It won't work. That's all I can say.
I will say it one more time. Only a total naive would think the inventors would sell a device which could be replicated. No way. Loose your hope.

I sent Damasio a link of this thread so he could see the pictures. He told me he's really sorry at someone who spends money on a device and then dismantle it. :confused:

[hung]

I'm interested in the sensor, as I was not allowed to open it on the PDC205 I was loaned.

There's an egyptian guy I think who opened the ionic chamber and post pictures. Wasted his time. Found nothing.

Also want to know... does it detect gold?

No coments.

[Kev]

Black magic

Good one Alex.

Hung if this is the case.....
"But again fellows, despite of that this model works (don't know now after open) but it cannnot be replicated. You can assemble it piece for piece. It won't work. That's all I can say."

Then this contraption is nothing more than a fancy ouija board, yes spiritism. Accursed is anyone messing with that stuff, I've seen it for myself, it will eventually coil back and bite you, mark my words.

Kev.

[Jim]

Two Thumbs Up!

Thanks for sharing

[Qiaozhi]

This stuff really needs debunking. Excellent job, and keep up the good work.
Out of interest - I'd like to know how you acquired this Mineoro. From a disgruntled owner perhaps?

Also, what did you use to remove the potting?

[schatzsucher]

couldn't one X-ray the sensor?
