What did you find with a lrl

[Morgan]

PDK-3

2017

[Dubulumach]

Great find my friend. Old DCH85 mod Esteban with old philips TDA7000 did the job.

I am sure you have many great finds. The choice is yours, post or not!

I am experimenting with ТА2003Р equiv. ТА8184Р as FM sniffer frontend instead TDA7000.

[Morgan]

PDK-3

Great find my friend. Old DCH85 mod Esteban with old philips TDA7000 did the job.

I am sure you have many great finds. The choice is yours, post or not!

I am experimenting with ТА2003Р equiv. ТА8184Р as FM sniffer frontend instead TDA7000.

yes, yellow was found too, 40 m distance.

the TDA7000 is very rare to find...

I built four PDK-3 , just in case ...

[Morgan]

hi there !

testing the Manolo?s PDK upgrade almost bite by a large poisen spider , the guardian of a 23K gold ring

https://www.youtube.com/watch?v=aeF-18Bs4HA&feature=youtu.be

[Morgan]

PDK find

hi there !

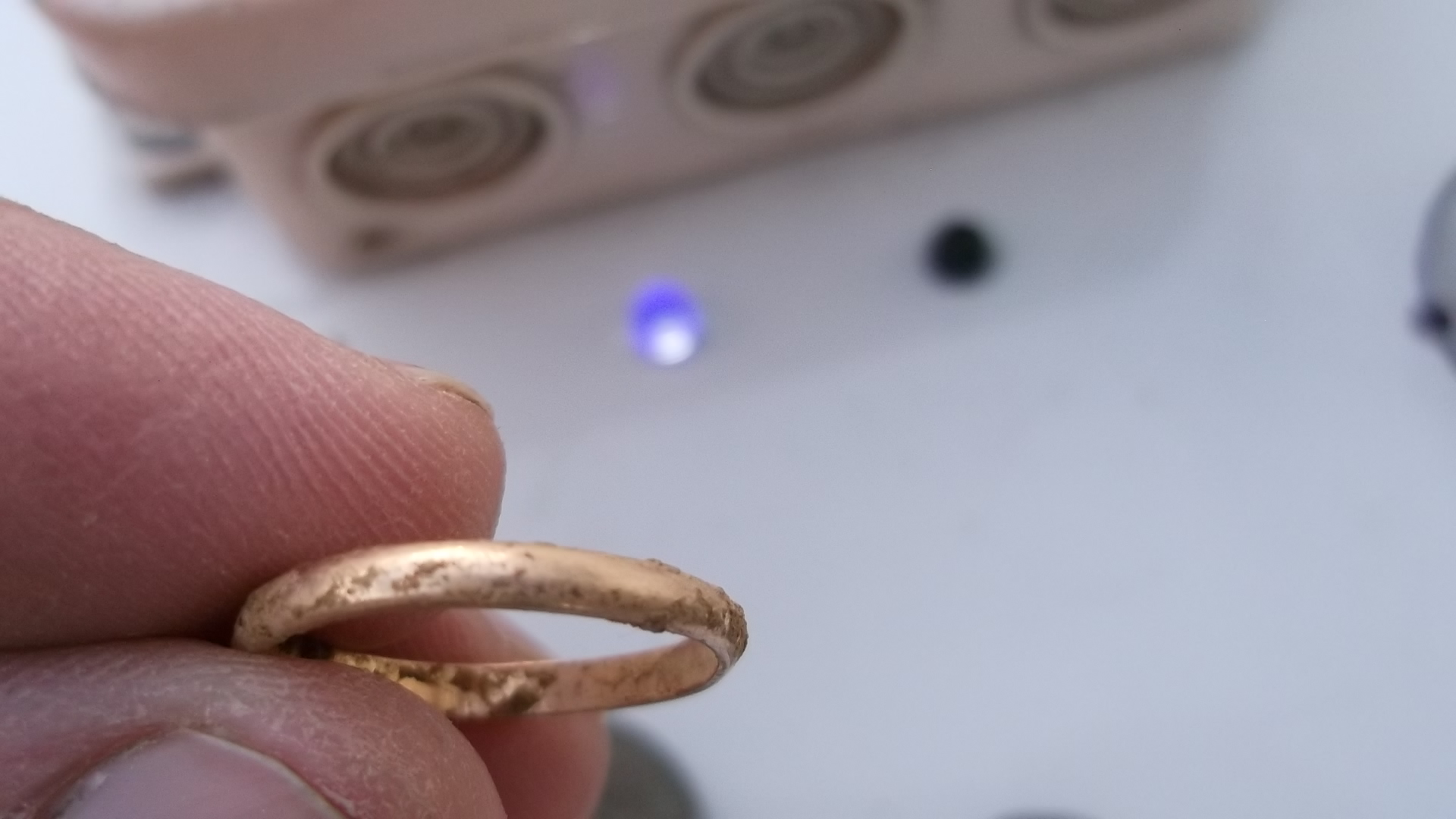

testing the Manolo?s PDK upgrade almost bite by a large poisen spider , the guardian of a 23K gold ring

https://www.youtube.com/watch?v=aeF-...ature=youtu.be

Manolo sent his PDK for modification with KIT IR/UV, before open the box I made test in the place of the silver bracelet and it is working , he said not work in Italy ...

https://www.youtube.com/watch?v=qVrE2W1cnUs

[putrechigi]

Manolo sent his PDK for modification with KIT IR/UV, before open the box I made test in the place of the silver bracelet and it is working , he said not work in Italy ...


https://www.youtube.com/watch?v=qVrE2W1cnUs

hello morgan and averybody thanks for the change you made to the mipo PDK, I am very happy with the findings you made in your land, I repeat that after three years of research in my country I have never found anything and I have never claimed that the PDK did not work but in my opinion you have to test it in various places on the planet, in fact I have often invited you to my house to take the tests and pay all the expenses, isn't it? now as soon as he arrives i will do again related tests from video, if it worked without changes i would not have sent it to you my friend, i have silver coins buried for several years it should be easy for him to detect them, i will also bring a traditional metal detector for test,
thanks again for the time spent in my PDK, I update you all in the forum as soon as I get there
best regards to Paulo and everyone
putre

[Morgan]

the modificated PDK has three modes that you can play in your field test :

I- PDK same has before , electromagnetic/electrostatic passive receiver
II- PDK + IR/UV
III- IR/UV

I made the test on the silver bracelet before the upgrade, I see that you put a ceramic 4N7 for frequency resonance, and it was locating the bracelet when I made the video :

https://www.youtube.com/watch?v=qVrE2W1cnUs

lets see results with the upgrade ...

[humhum]

Leds

Hi Morgan , in Video I see UV Led left of Battery box , but where is IR Led ?
May is in Right side of Batt box .

With using UV/IR Leds Kits system , Distance of Finding Buried how match is different, (Cm or Meter ) ?

[Morgan]

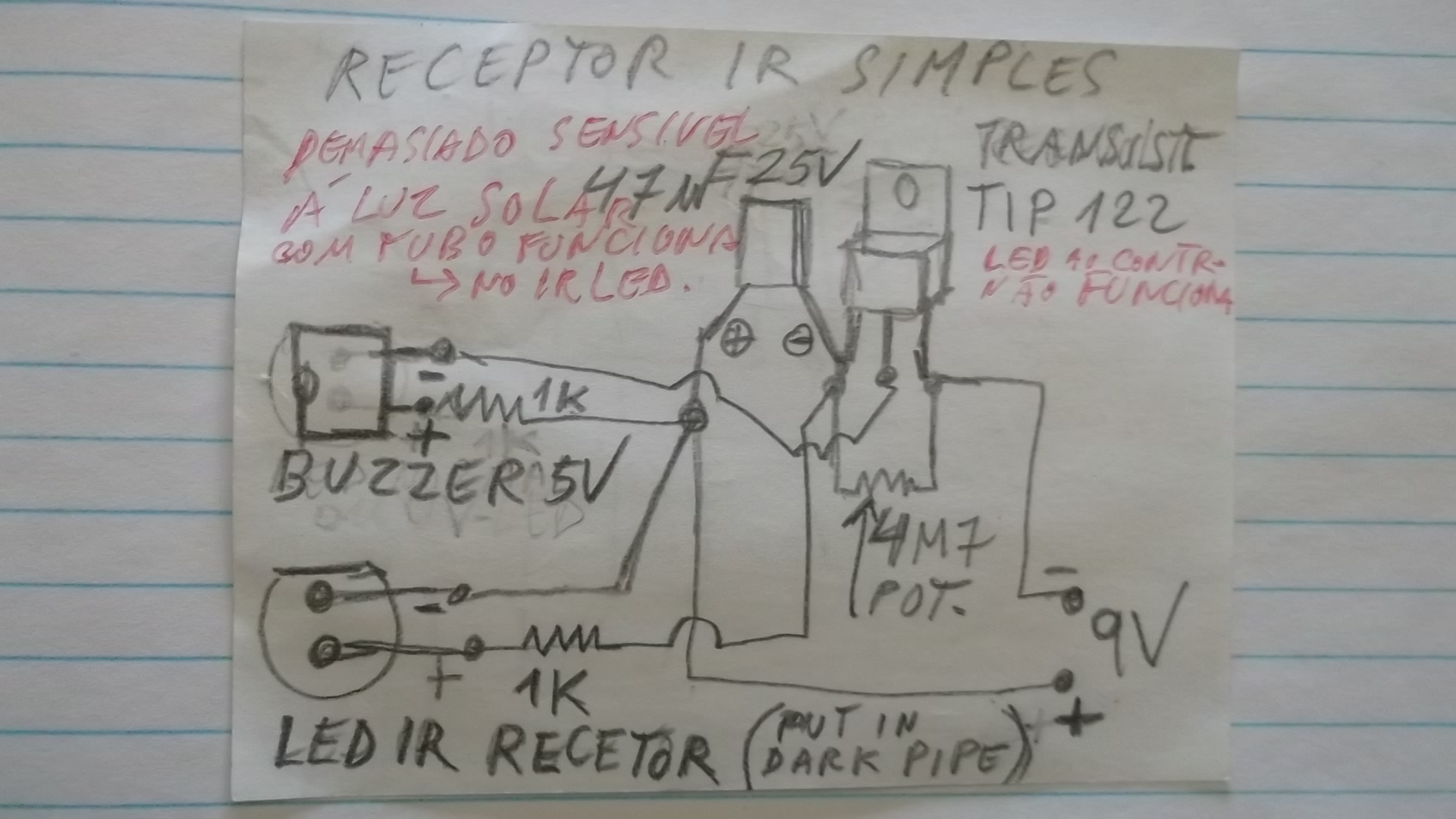

IR receiver simple shematic for tests

Hi Morgan , in Video I see UV Led left of Battery box , but where is IR Led ?
May is in Right side of Batt box .

With using UV/IR Leds Kits system , Distance of Finding Buried how match is different, (Cm or Meter ) ?

all entusiasts can play with this short range IR receiver, you can use rx LED IR 740 to 940nm ,need to instal the LED in a dark tube to work, very good for beginners experiments with Infra Red locators,very simple and easy to get TIP122

https://www.youtube.com/watch?v=w8zBj2-RwaM

[Morgan]

start to find some gold coins in your test yard

humhum with your big knowledge in electronics ,you can modify or upgrade this simple shematic .
if interested on that, put here the upgrades that you will try in ISIS proton program,share to all entusiasts and believers !

[Morgan]

GOLD IS WAITING !

[humhum]

start to find some gold coins in your test yard

humhum with your big knowledge in electronics ,you can modify or upgrade this simple shematic .
if interested on that, put here the upgrades that you will try in ISIS proton program,share to all entusiasts and believers !

Ok Friend , But now I am busy , that I build Alonso Passive -PDK with many different values and Coil voltage is near 22 Vpp , also have Discrimination of Metals , but now I search in my Garden buried correct set Frequency for Beep , after finish this Project , I can Try for IR project .

Regards.

[humhum]

all entusiasts can play with this short range IR receiver, you can use rx LED IR 740 to 940nm ,need to instal the LED in a dark tube to work, very good for beginners experiments with Infra Red locators,very simple and easy to get TIP122

https://www.youtube.com/watch?v=w8zBj2-RwaM

Hi Morgan , Here in Video You Find with IR Receiver which Precieus Metal Buried ,
this is Silver or Gold buried ??

Can You find with one IR Led Silver and Gold buried , or need two different
IR nm Led for this two Metals .

[abdou2014]

all entusiasts can play with this short range IR receiver, you can use rx LED IR 740 to 940nm ,need to instal the LED in a dark tube to work, very good for beginners experiments with Infra Red locators,very simple and easy to get TIP122

https://www.youtube.com/watch?v=w8zBj2-RwaM

this circuit didn't work for me ?????

[Morgan]

in the test for locating the gold medal ,the IR LED need to put inside dark pipe 2cm, if not use this pipe the LED make it beep everywere.
