VLF RECEIVER

[nelson]

Hi to all.

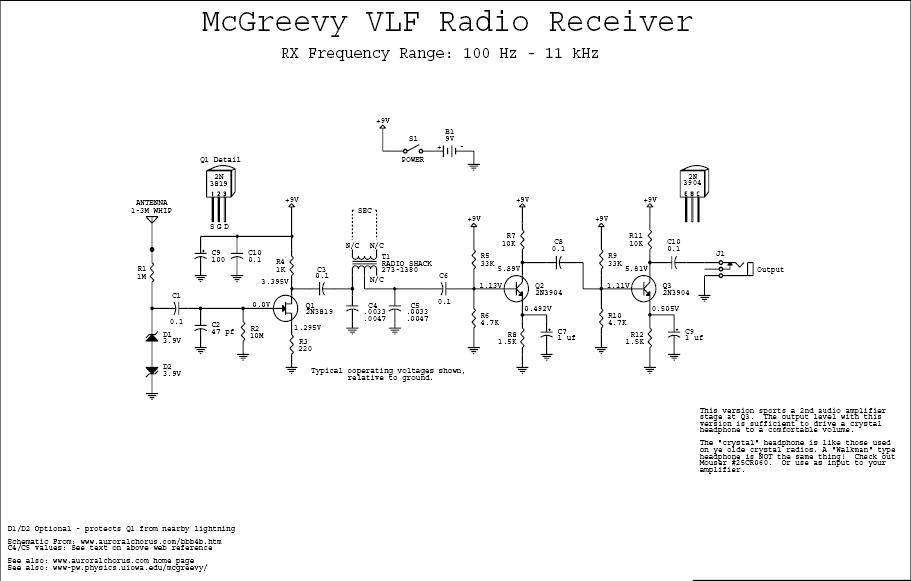

I was asking if the vlf rx circuit that i m posting,could it be used for remote sensing, or to take some circuits parts to built another circuit?
Regards
Nelson

[Geo]

Hi Nelson.
I believe that the LRL construction is not so simple!!!!!
See Mineoro, rangertell, OKm etc.
There is a well keeping secret

Regards

[WM6]

Hi Nelson.
I believe that the LRL construction is not so simple!!!!!
See Mineoro, rangertell, OKm etc.
There is a well keeping secret

Regards

Geo, the only well keeping secret is, that mineoro, rangertell etc. devices are not working. There is no other secret in their boxes.

Nelsons receiver can be used as VLF detector using strong VLF (better to say ULF) transmiters radio signals. Not realy LRL but ULF Rx detector.

Most critical part on schematic is antenna. It can not be simple wire or telescopic antenna (these are just meaningless mineoro or rangertell decoration). Antenna have to be directive (better two or even three antennas, mean two or three input stages too) and focussed to positioning small targets to 0,5m in soil. That the antenna at its resonance frequency corresponding to the transmitter frequency is understood. Preferably directive shielded, but no fully RFI shieded like usual MD coils. If one do not want to wound tausants of windings may to use a ferrite rod. This as a starting point.

After transmiter selecting some bandpass filter can be added to schematic.

[detectoman]

hola nelson: ese circuito es para detectar proximidad de tormentas, detecta los distantes rayos, mas o menos hasta 200 kilometros, ( si la atmosfera esta cargada ') su sonidos son como cracks craks, tambien cualquier radio sensible detecta esos cracks, pero hacer un lrl con eso necesitaria otras etapas de filtros y amplificacion, nada facil, ya que se cuelan hasta los roces con la ropa de nylon, o interferencias incluso cracks de fugas' y siguen algunos insidiosos cracks, de todos modos el unico que podria sacar de alli un lrl , con su experiencia, seria alonso o esteban, yo tengo en receso un proyecto igual, y ya estoy pensando en filtros de cores' o toroides, pero lo detuve para hacer otras cosas, y luego todavia faltaria la discriminacion, asi que hechale calculo, un saludo mi amigo

[Altra]

Check out this interesting site. Lots of ulf/vlf receivers circuits and loops for natural and man made signals.

http://www.vlf.it/

[WM6]

Very well Altra, right things,

read this:

http://www.vlf.it/matteobruna/ULF_Induction-Coil.htm

this is right way to VLF Rx detector.

[Altra]

I read that article, good stuff. He said it did not work very well. But I think that is because its very directional. Thats good for us!

[WM6]

that is because its very directional. Thats good for us!

Exactly as you wrote.

[homefire]

Here is somemore on the circuit!

http://www.auroralchorus.com/bbb4rx3.htm

[BigBang]

Here is somemore on the circuit!

http://www.auroralchorus.com/bbb4rx3.htm

I think , directional antennas ( coils) more convenient than telescopic aerials for treasure hunting .

[Agraz]

Hola detectoman, me gustaria intercambiar info, sobre receptores vlf, mi e mail:
antonio.agraz.s@gmail.com
tengo otra info sobre circuitos similares, si tienes algo para aplicacion en tesoros, me gustaria intercambiar.

[Agraz]

Hello Nelson:
yes, may be for this receiver, you need a big ferrite rod, you find in:

www.coilws.com
www.stormwise.com

the low frequency penetrate very good in ground, and if you go to one site with big treasure in ground, you receive a null.

[abdou2014]

ARE THERE ANYONE WHO HAVE THE SCHEMATIC OF THIS DEVICE ???

http://www.ebay.it/itm/NASA-Inspire-VLF-3-Radio-Receiver-Kit-0-10kHz-Natural-Ham-Radio-Whistlers-/111783401651

[abdou2014]

THANK YOU !!!

http://air-radiorama.blogspot.com/2015/01/inspire-vlf-3-radio-receiver-kit.html

[UltraLRL]

INSPIRE VLF-3 RADIO RECEIVER KIT

Check This VLF RECEIVER!
It's much better than all other VLF receiver found on net (at least for me).

http://theinspireproject.org




http://uploads.im/f0CMA.png





http://uploads.im/Qv4AX.jpg




PDF:
http://theinspireproject.org/downloa...ionsOnline.pdf


http://theinspireproject.org/downloa...Operations.pdf
