Detector #2

[Funfinder]

Yeah, finally the next working detector.

Constructing or inventing stuff really is hard work for the brain:

How should it build best, where do I get the parts, best arrangement so further
improvements or upgrades are possible, what is the real goal etc. etc.


However - the new prototype is working:

- very good transportable
- uses human bionic energy
- detects neon-tube from 10m
- fading out ultrabright LED light
- very directional target localization
- signal output even if energy just low

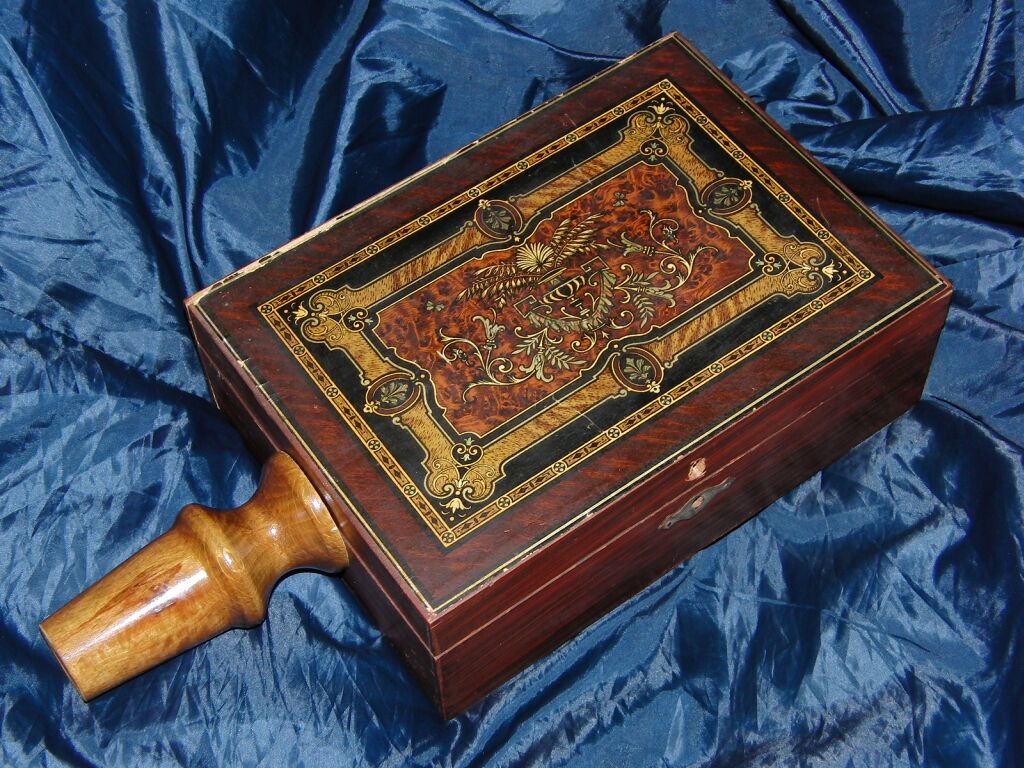

- made out of noble wooden box & handle
- enough free space left for additional features

[WM6]

Yeah, finally the next working detector.

Nice, but very obsolete technology.

[Qiaozhi]

Yeah, finally the next working detector.

Constructing or inventing stuff really is hard work for the brain:

How should it build best, where do I get the parts, best arrangement so further
improvements or upgrades are possible, what is the real goal etc. etc.


However - the new prototype is working:

- very good transportable
- uses human bionic energy
- detects neon-tube from 10m
- fading out ultrabright LED light
- very directional target localization
- signal output even if energy just low
- made out of noble wooden box & handle
- enough free space left for additional features

Cool !!
Can we see inside?

[detectoman]

dear funfinder i appreciate evervary other details, ?
may be contain an pistol?

[Funfinder]

it even detects if you lift your feet from ANY ground!

[detectoman]

wowwwwwwww funfinder your extrange perseverance obtain fruit, may congratulations brodhy :0

[detectoman]

funfilder keep these away of cloners chinesse and suspicious geotech builders, may be the sceptics any day be convinced on lrl succes
too you keep far of listens

[Funfinder]

Guess I have to answer my question on my own...

btw. here are some interresting MD test results:

http://metalldetektortest.eu/pageID_9307646.html

[Funfinder]

Cool !!
Can we see inside?

I think soon - work still in progress...

[Funfinder]

wowwwwwwww funfinder your extrange perseverance obtain fruit, may congratulations brodhy :0

funfilder keep these away of cloners chinesse and suspicious geotech builders, may be the sceptics any day be convinced on lrl succes
too you keep far of listens

thx mate!

but I'm not shure in making a big secret out of it...

if I get overrolled by a truck today (btw. gibon if you read here too: be careful not get slain by a coconut if you dig at those trees... - each year die dozens of people by falling down coconuts...) my inventions perhaps would be lost...

But for shure I want something in return - at least information what MDs are really the best nowadays in finding deep small stuff, because for deep large objects I have already the Jeohunter. Perhaps I'll get myself the new Blisstool LTC64 - because I love Bulgaria and the price is fantastic!

[Funfinder]

circuit one - build and tested................... OK
circuit two - build and tested................... OK
housing with handle ready....................... OK
joining circuit one plus two...................... OK
antenna one and two... build and tested... OK
"connecting" antenna one and two........... OK
final sensitivity checks............................ OK
Q.C. passed........................................... OK

elapsed time... over 30h
takin' & posting pictures of device... soon

[bama]

detector #2

Hey funfinder, thank God someone is trying to build a LRL instead of
finding fault and fussing. You're the man go for it! bama

[Funfinder]

Yeah! Another successful work is finished!

This detector uses a very silent "threshold" noise and moving electrostatic loads in front of create different squeaking effects.

Near the handle is the ground-contact for touching with a finger for even better gain.

I'm already curious about the field-test!


Phew! This was a nice piece of work and now the exciting part is beginning!

[J_Player]

Yeah! Another successful work is finished!

This detector uses a very silent "threshold" noise and moving electrostatic loads in front of create different squeaking effects.

Near the handle is the ground-contact for touching with a finger for even better gain.

I'm already curious about the field-test!


Phew! This was a nice piece of work and now the exciting part is beginning!

Quite cool.

The scotch tape is effective for concealing the wire connections to prevent reverse engineering.
Will the production model be built on a standard PCB or SMT?

Best wishes,
J_P

[goldfinder]

Schematic ??

So, do we get to see the schematic.

AND the test results ??

Goldfinder

PS - Great to see someone doing something besides critisizing, and condeming what some else's ideas. Real progress we all hope for!
