Lrl from Italy

[FrancoItaly]

Hi All
I don't have much explanation to give to you, I think that all Lrls are passive receivers, but not a broadband receiver (I think that the "phenomenon" doesn't have a particular frequency). My lrl amplifies many times an internal signal of about 3Mhz and it measures the phase change between the oscillator and the amplifier stage but it's also possible to measure the amplitude change. The phenomenon changes the phase (and the amplitude) of the amplifier stage but I don't know if only long time buried metals are the cause of the phenomenon. Surely with too gain the Lrl reveals also the "compass effect". The Lrl is not a metal detector but only a "abnormal signals" detector, I suppose that the solar wind may be involved in this "phenomenon" but I'm not sure.
Best Regards

[iron1944]

Mr. Nicolas.
GREAT MASTERS.
- Lrlfranco locator box on the front panel R / S key to how this switch works there? Show this switch connectivity by drawing on the scheme.
- In the same box with pvc pipe wrapped round copper wire diameter of 70 what will happen?
Thank yo

[Nicolas]

Mr. Nicolas.
GREAT MASTERS.
- Lrlfranco locator box on the front panel R / S key to how this switch works there? Show this switch connectivity by drawing on the scheme.
- In the same box with pvc pipe wrapped round copper wire diameter of 70 what will happen?
Thank yo

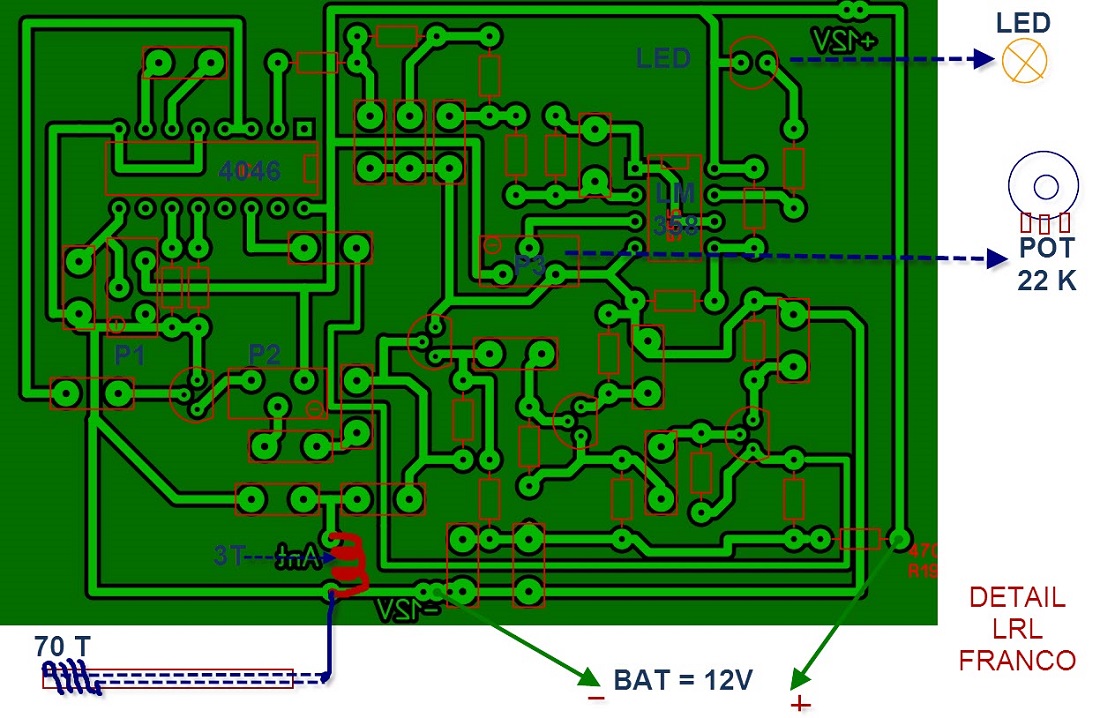

For detail look this picture

For components PCB ask that from Geo
Because my PCB is not the same of Geo


Good luck my friend

[mustefa ubram]

hi to all freinds and nicolas and franco
one question :
Why and What phenomenon is caused by a phase change?

[FrancoItaly]

Hi iron1944
If You refers to my Lrl (the photo that I posted) in the main box there are power stage and display stage with LM3914 that drives 10 leds. In the front panel there are 3 switchs, one is power on/off, another for dot/strip led display, I mean only one led at a time or all the leds and the last switch is for inverting DC signal from the sensor stage (this is currently not necessary).The 2 terminals of the coil antenna are linked togheter and they go to L1.
Best Regards

[mustefa ubram]

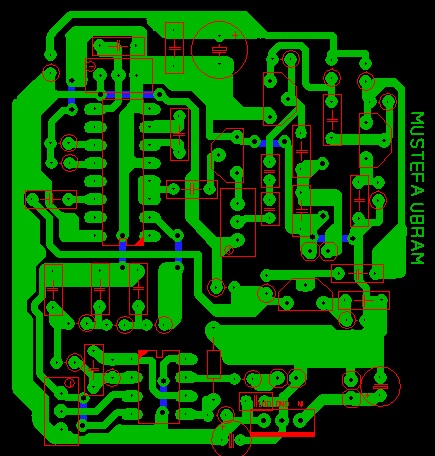

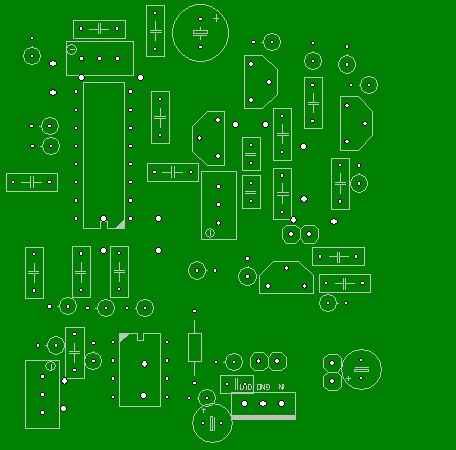

NEW VERSION PCB OF LRL FRANCO 6CM*5CM

[Nicolas]

NEW VERSION PCB OF LRL FRANCO 6CM*5CM

Hi Mustefa Good work my friend

[iron1944]

MR. MUSTAFA UBRAM
Thanks for PCBs
PCB BOARD write on the part numbers and part names.?
Thank you.

[mustefa ubram]

hi franco
Do reveal all the buried metal?exampel bronze?or copper?

[Nicolas]

Hi friend

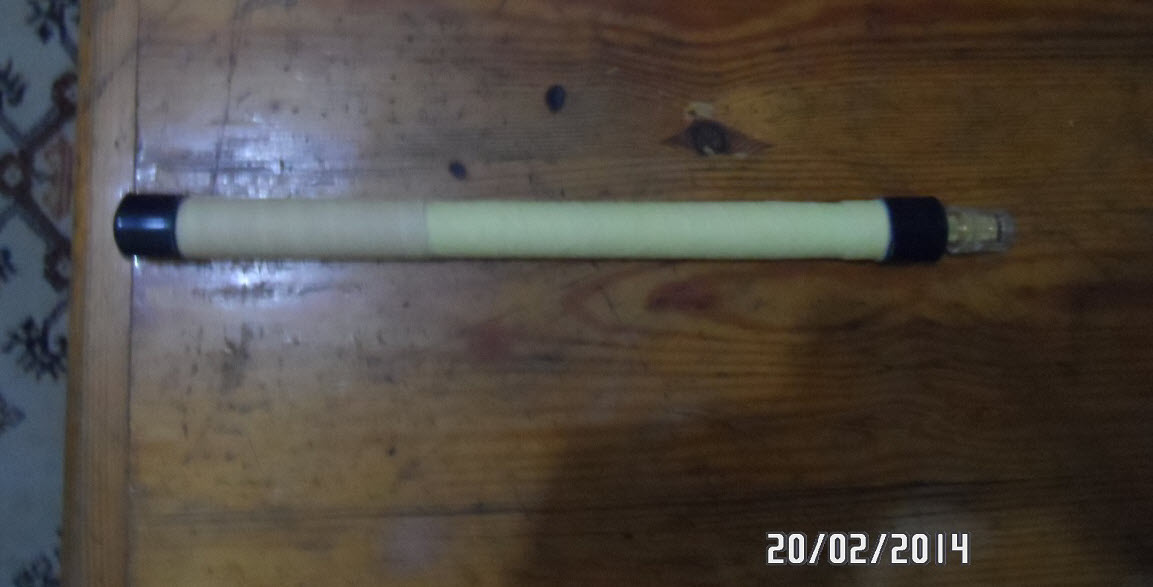

I put here the antenas Coil with Ferrite for LRL Franco and other LRL's it's more better than telescopic antennas.

Good luck to all

[Nicolas]

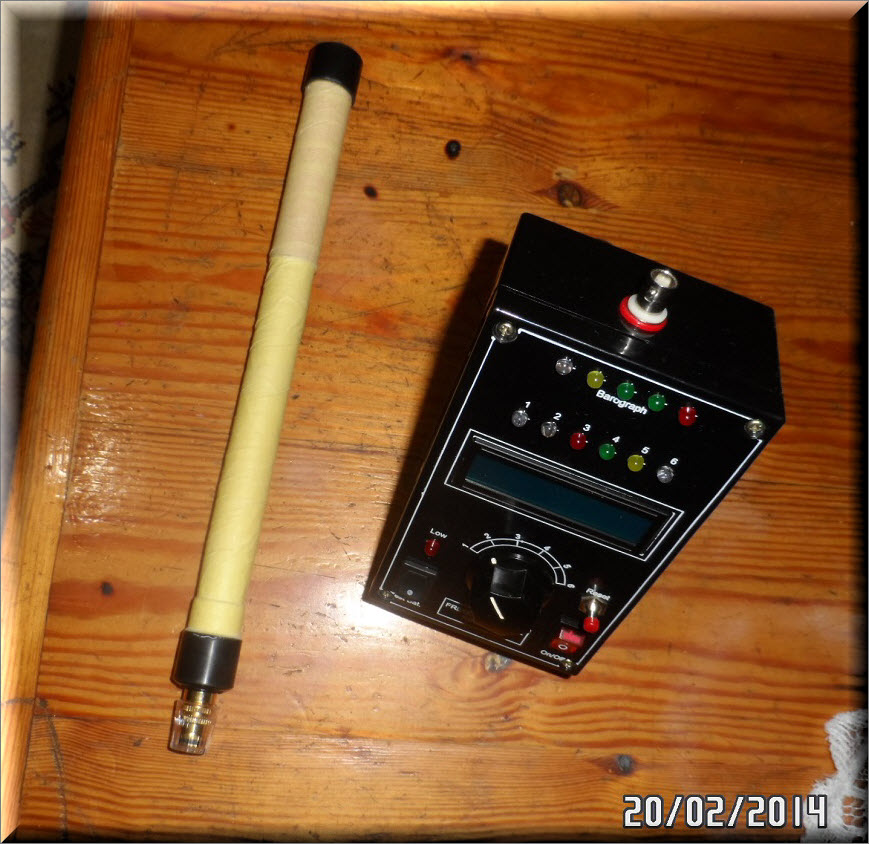

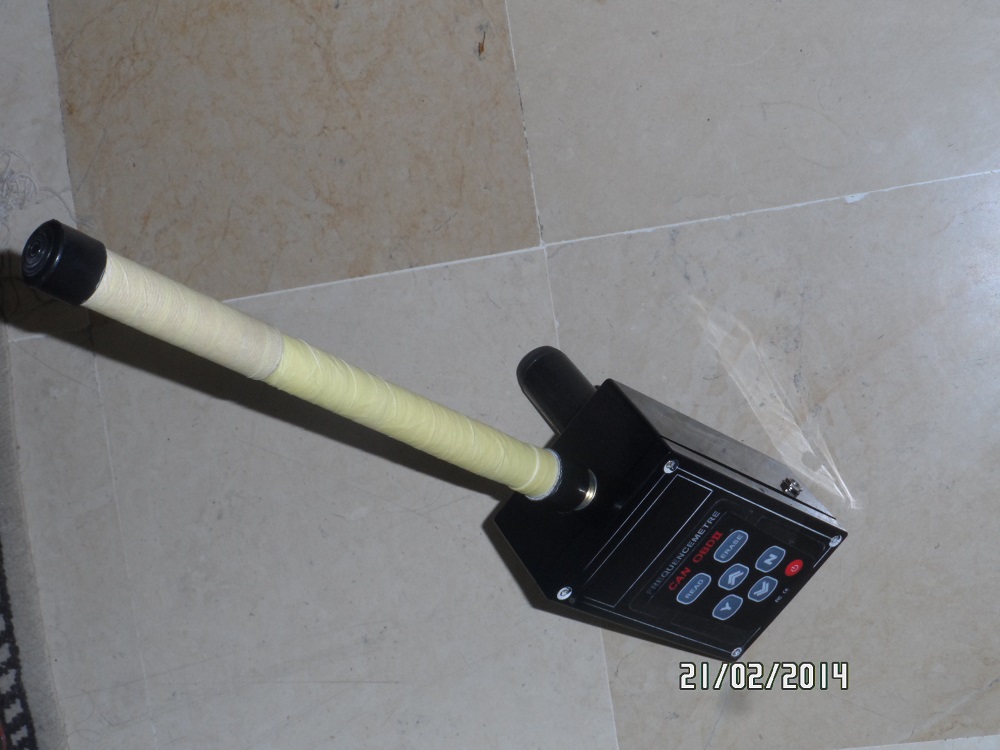

My Degital LRL A24 with Antenas LRL Franco is so better and thus very sensitive than telescopic antennas

Thank you my dear Franco for this coil.

[FrancoItaly]

Hi Nicolas
My coil antenna is better than ferrite core antenna? For the moment I cannot make experiments.
Best Regards

[Nicolas]

Hi Nicolas
My coil antenna is better than ferrite core antenna? For the moment I cannot make experiments.
Best Regards

Hi franco I cant understand what you mean

For my Coil is with ferite core diameter 12mm and long 220 mm

[Fred]

My Degital LRL A24 with Antenas LRL Franco is so better and thus very sensitive than telescopic antennas

Thank you my dear Franco for this coil.

Hi Nicolas,
You say it is working much better, but doing what ?
It would be great to see results of your experiments.
Thanks!

[ozanmelih]

Hi nicolas. Which one is good? King lrl 4.2 or lrl A24 ?
