Originally posted by walkmanHi friends,
I am late answer for so sorry.
Okantex: for stability.Dual coil more sensitive
nicolas: hi old friend's.
Franco: I test it and added video my channel. Very nice test make it.
Soon
THx Walkman
I have meet Okantex on Whats app and we speak about this project and test
please i have sent to you PVM look it.God bless all - Nicolas
<< My channel >> << My shop >>
Please do not demand Private Messages .... I cant reply all here....For more information you can send me email ....Thank you for understanding
Comment
-
Good morning Franco! It turns out the signal should be on the basis of TP2 2-3 volts. Thank!Originally posted by FrancoItaly View PostHi Geo,
The important thing is that there is a signal at the output of TR1, about 2V - 5V, as I mentioned with the quartz disconnected there should be no DC voltage signal at the output, and with quartz connected you need to choose C2, C3, C4 for a DC signal (about 2-5V). The best solution is a double-sided PCB with the lower face connected to ground and with the components soldered on the top face.
Regards
Comment
-
Good afternoon Franco! Not clear situation. Redid with one coil 3 turns and an amplifier. Configured the generator at the output of 2.5 volts. I set up a chain of LEDs and lights up at the end of a 470K variable resistor. I connect the amplifier when the antenna is touched, there is no LEDs burning. Even if you wind 4.7k until the first LED lights up, the next one does not light up when you touch the antenna with your hand. For that there is a reaction and the LEDs light up if I touch the battery power with my hand. The top layer is connected to minus. If you turn off the top layer, it reacts to a hand with 10 cm without touching anything.
Comment
-
Hi all !
Franco Italy LRL very sensitive to E field component. It's raw device not useful at dirty terrains with high mineralization. So much false signals. Spurious signals at rusty iron pieces. If you want to dig old nails and iron is good. All targets are yours.
Better build Geo magnetic lrl modification from Andy Flind. Sch. has given by Geo. Hi Geo !
Comment
-
As I told you privately you have to start by making the original version, that is without the amplifier, following the instructions (helps.txt), touching the antenna the signal at the output of the sensor stage (emitter of TR5) must decrease and therefore if set the threshold to turn on the first led, this should go off by touching the antenna.Originally posted by Pahom View PostGood afternoon Franco! Not clear situation. Redid with one coil 3 turns and an amplifier. Configured the generator at the output of 2.5 volts. I set up a chain of LEDs and lights up at the end of a 470K variable resistor. I connect the amplifier when the antenna is touched, there is no LEDs burning. Even if you wind 4.7k until the first LED lights up, the next one does not light up when you touch the antenna with your hand. For that there is a reaction and the LEDs light up if I touch the battery power with my hand. The top layer is connected to minus. If you turn off the top layer, it reacts to a hand with 10 cm without touching anything.
You speak of a top layer, but it is the lower one to be connected to the minus and this connection is used to avoid self oscillation. First of all, you have to calibrate the sensor stage in order to have the maximum possible amplification, only then can you connect the display stage.
Comment
-
Thank! I will continue to configure!Originally posted by FrancoItaly View PostAs I told you privately you have to start by making the original version, that is without the amplifier, following the instructions (helps.txt), touching the antenna the signal at the output of the sensor stage (emitter of TR5) must decrease and therefore if set the threshold to turn on the first led, this should go off by touching the antenna.
You speak of a top layer, but it is the lower one to be connected to the minus and this connection is used to avoid self oscillation. First of all, you have to calibrate the sensor stage in order to have the maximum possible amplification, only then can you connect the display stage.
Comment
-
At this point there is an alternating signal superimposed on a continuous voltage, there is no fixed value for good operation, it must be found experimentally. It is necessary to start with the whole cursor towards + 12V (alternating signal = zero) and increase slightly until you have at the X point a signal of about 2 - 3V from peak to peak. Tuning is not easy since the frequency is lower than the 8Mhz version and C13 / C15 may need to be increased. Due to the high gain of the sensor stage, measuring with the oscilloscope at point X could change the working conditions (maybe the sensor stage could auto oscillate). Sometimes it is useful not to ground the oscilloscope.Originally posted by abdou2014 View PostI used with this version a ferrite antenna,
the antenna reacts to fresh precius metals and not to iron,

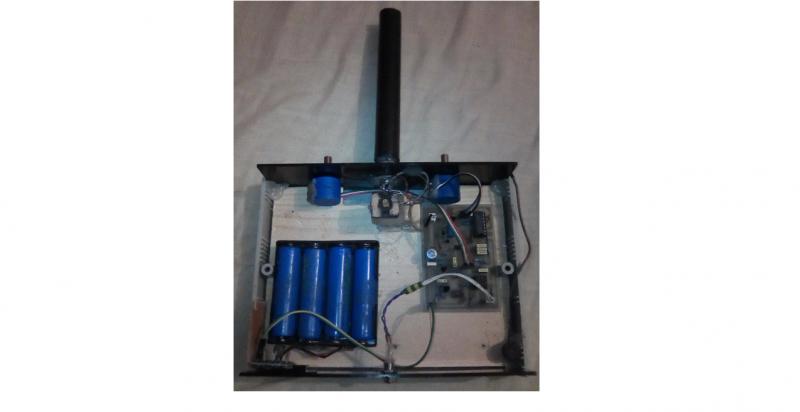

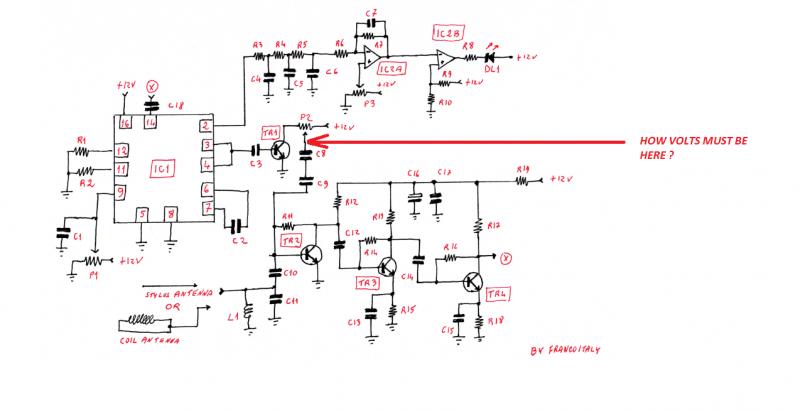

I need to know how many volts are needed in the point on the photo to have more results, thank you Mr Franco !
Comment
-
I don't know what to answer, I've never done these tests, as I always say the real test is in the field. I still find it strange that it reacts to a magnet.Originally posted by abdou2014 View Postwith 4.5V my LRL reacts to the precious metals fresh to 10 cm, it does not react to iron, it react to the spark of a battery 1.5V from 1.2 meter , it react also to a magnet from 80cm . a laptop from 3 meters . is it sufficient ???
