ALONSO PD MISSION ACCOMPLISHED V1,V2

[Pahom]

in Original sensor have 24K gold on Sensor with connection of + and - ,
so like Four and Five connection .

You may be say for this ?

Yes, you're right, I found a photo, and there five wires come out. There are 3 more volts on the sensor.

[humhum]

I try 14 turns in 4 mm diameter, here it work better more turns than the 4 turns in schematic

Very thanks Morgan , 14 turns , Coil Diameter is 4 mm ''O'',
What is diameter of Wire , may be is from 0,50 mm wire ?

[reza vir]

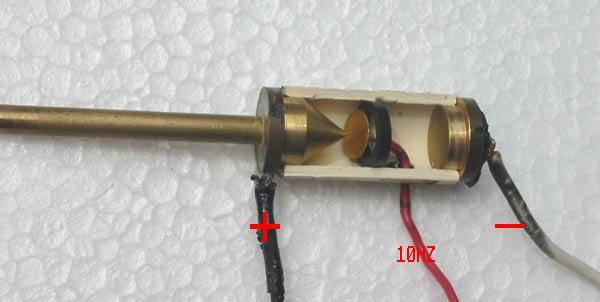

I have two type Photos from Mineoro sensor which is best , and How is correct connection
of '' +'' ''-'' and to Leaf .

Org. Sensor and Greek Sensor ;

correct connection

[Morgan]

local frequency coil

Very thanks Morgan , 14 turns , Coil Diameter is 4 mm ''O'',
What is diameter of Wire , may be is from 0,50 mm wire ?

its 0,50mm wire

[Morgan]

oscillator coil of DCH85

Thank you Mr Morgan, I noticed that the receiver does not respond to the stimulator, is it normal ?

no,thats not normal, the oscillator coil when you aproach to the antenna it must make it beep , for the process the GAIN POT must be half way, and you keep the coil in this position where it beeps,and make a step back until it stop,its tuned, normal is 6 to 8 cm behind the antenna.

[Morgan]

oscillator coil DCH85

[QUOTE=abdou2014;159195]Thank you Mr Morgan, I noticed that the receiver does not respond to the stimulator, is it normal ?[/QUO

I have video show the process , is it possible to download here ?

[humhum]

its 0,50mm wire

Thakns Dear Morgan , I build it and is well .

[GOLDEN LILLY]

Yes Morgan, pls show us the video of stimulator adjustment...

[Morgan]

mineoro GOLD CHAMBER

in Original sensor have 24K gold on Sensor with connection of + and - ,
so like Four and Five connection .

You may be say for this ?

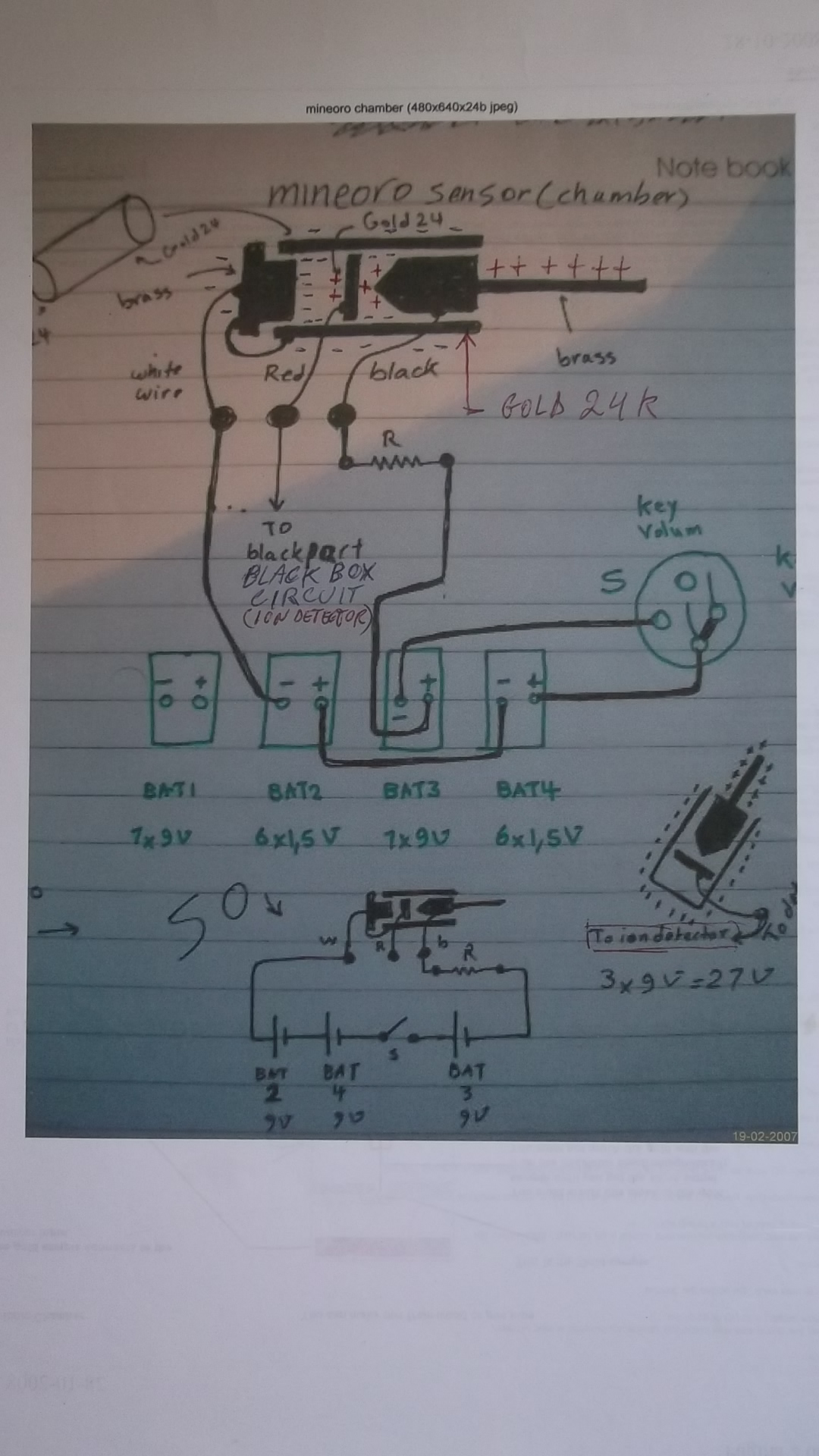

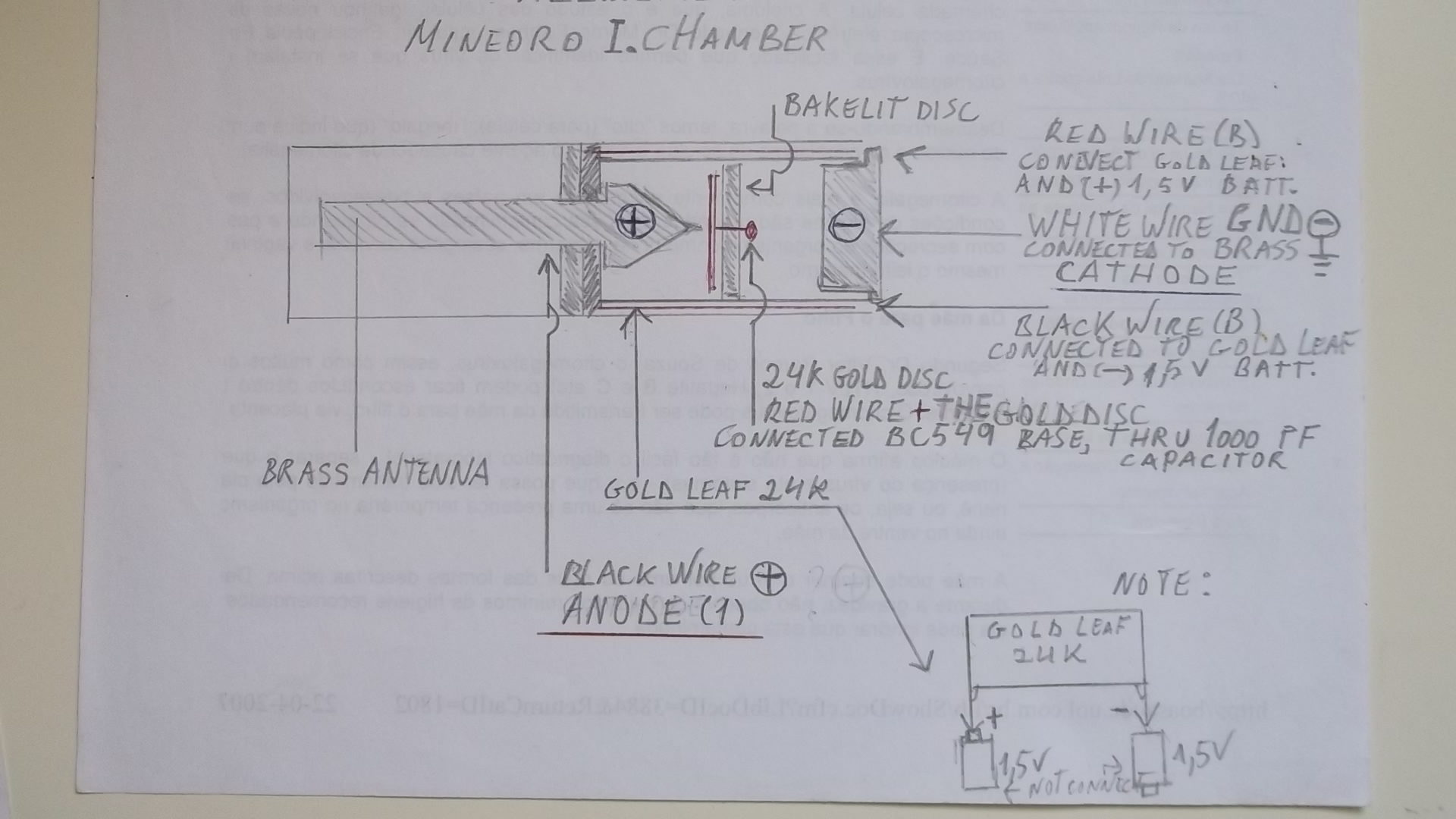

here some mineoro gold chamber for study:

the distance for the gold pin and the plate is exactly the moment the conductivity stop,maybe 0,05mm or less than that

[Morgan]

I mean the brass antenna pin as 0,05mm distance to the 24 Karat gold disc , thats to produce the GOLD resonace efect

[humhum]

the mineoros use this gold chambers and they will work only if the circuits are upgrade,Esteban and Geo made this modifications

Also in to me with few modification for many Km

[Morgan]

mineoro DC2008

Also in to me with few modification for many Km

I think 10m for a gold coin YES 100m NO

a treasure 100m YES 1000m NO

unless you have MAGIC LRL

thats my experience...

[humhum]

Magic LRL

I think 10m for a gold coin YES 100m NO

a treasure 100m YES 1000m NO

unless you have MAGIC LRL

thats my experience...

Yes this is Magic LRL , for small Coin I not know , but for medium or big is more sensitible from more 1000 meter , I know What I said or What will make this Magic , This is so like Mineoro , but with Different modification .
Also in Mineor web , before many years Said that is Locate one medium statue from
1,5Km to 2Km and was have Picture for it , but I not know does is real Picture for Mineoro web. But my is Real .
This Location for more distance I try with so like Mineoro Ionic/Electrostatic and also with
Coil is same Result , this is change of Capasitors .
LRL is different system for Long, also PD is different system for short distance , You know it , I never build Real PD , only LRL .

[Farid]

Hello Mr Morgan

[Farid]

here it is the original PD in a field test where it locate a silver bracelet buried 40cm at a distance 6 meters, however it drift time to time,and we need to put it again to limits of sensitivity. actualy I building a new PD project using the BFO(with cristal for 100% stability) instead of the TR/IB , later I will show results here,if I will be sucessful

https://www.youtube.com/watch?v=wlU1t2C7Rs4

Hello Mr. Morgan
I tested your pdk 2 and 3 devices.
Unfortunately, it is only sometimes responsible in urban environments and not at all in areas outside the city.
But Alonso's pd gave me a good answer, both in the city and outside the city.
