WE MUST FIND THE EXACT FREQUENCY TO MAKE TARGET IN VIBRATION
-
-
A new Mineoro for the 2026.
What is new??? i add an ir receiver and this time an Ion chamber although i don\t believe to it.
Also i add a golden filter.

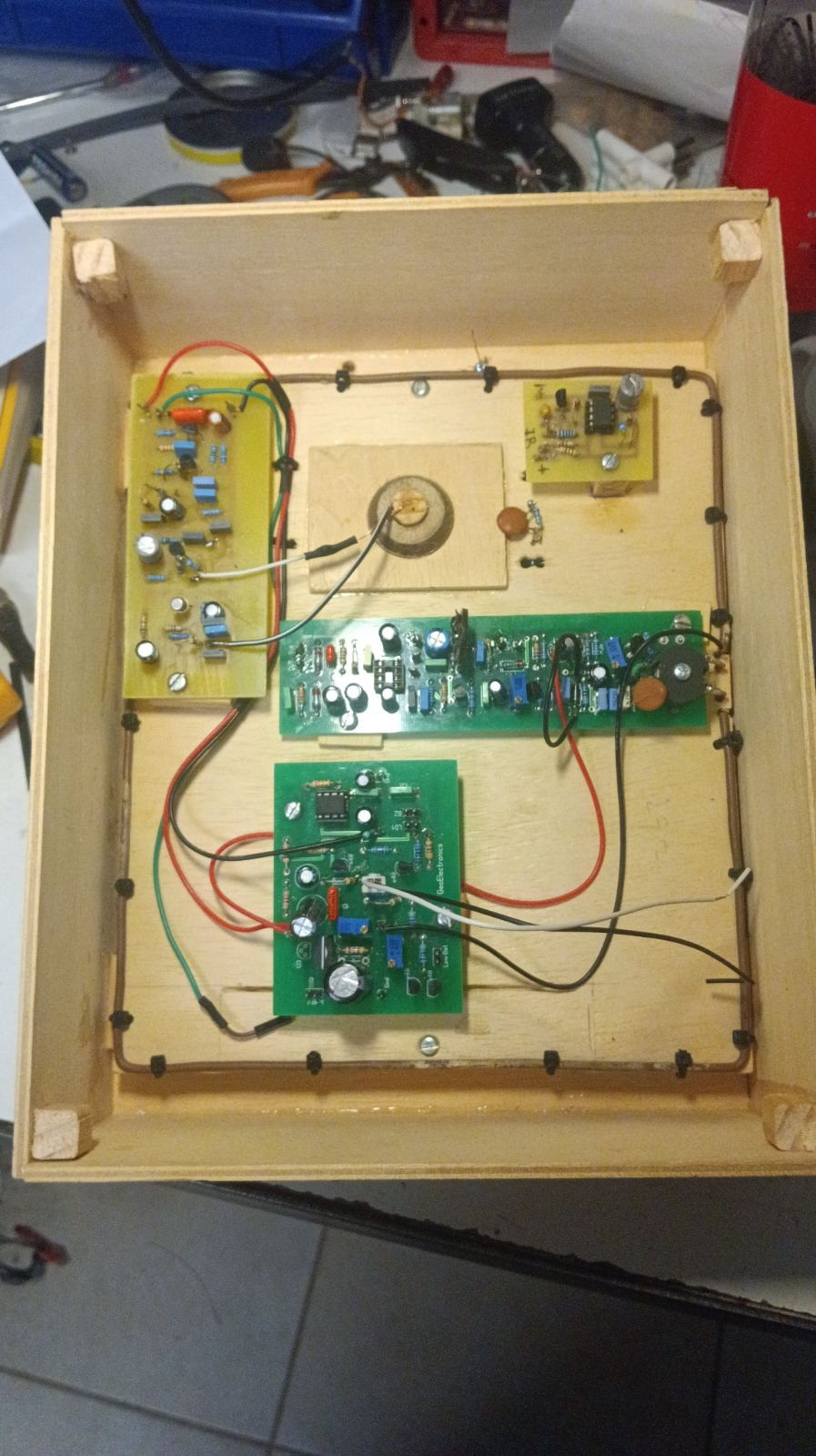

A photo from construction stage.
GeoComment
-
very good job geo! I think the chamber from my own tests makes a small difference in detection, the interesting thing here will be the gold filter, will we see more photos?Last edited by CHRIS212; 12-17-2025, 12:59 PM.Comment
-

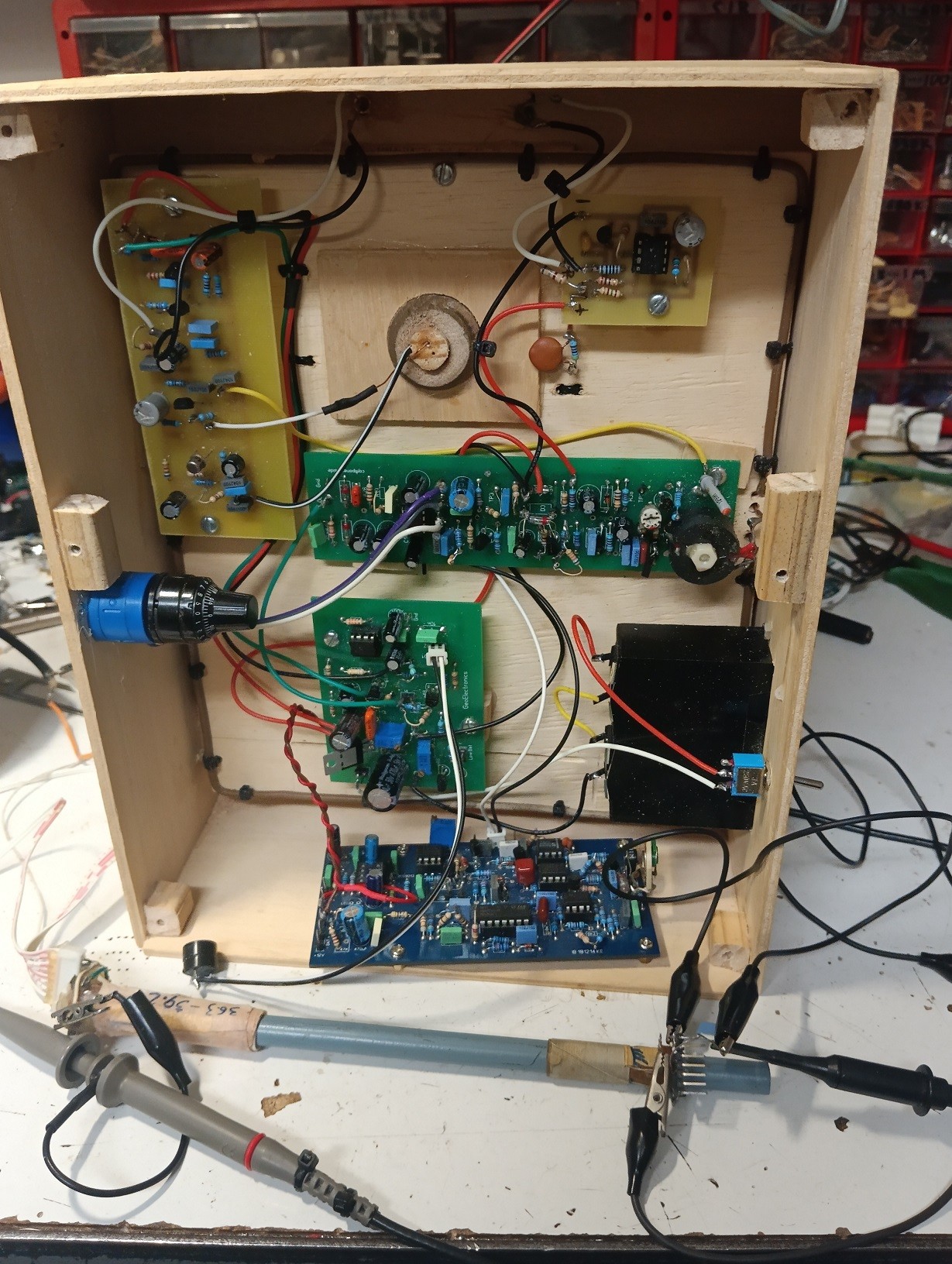

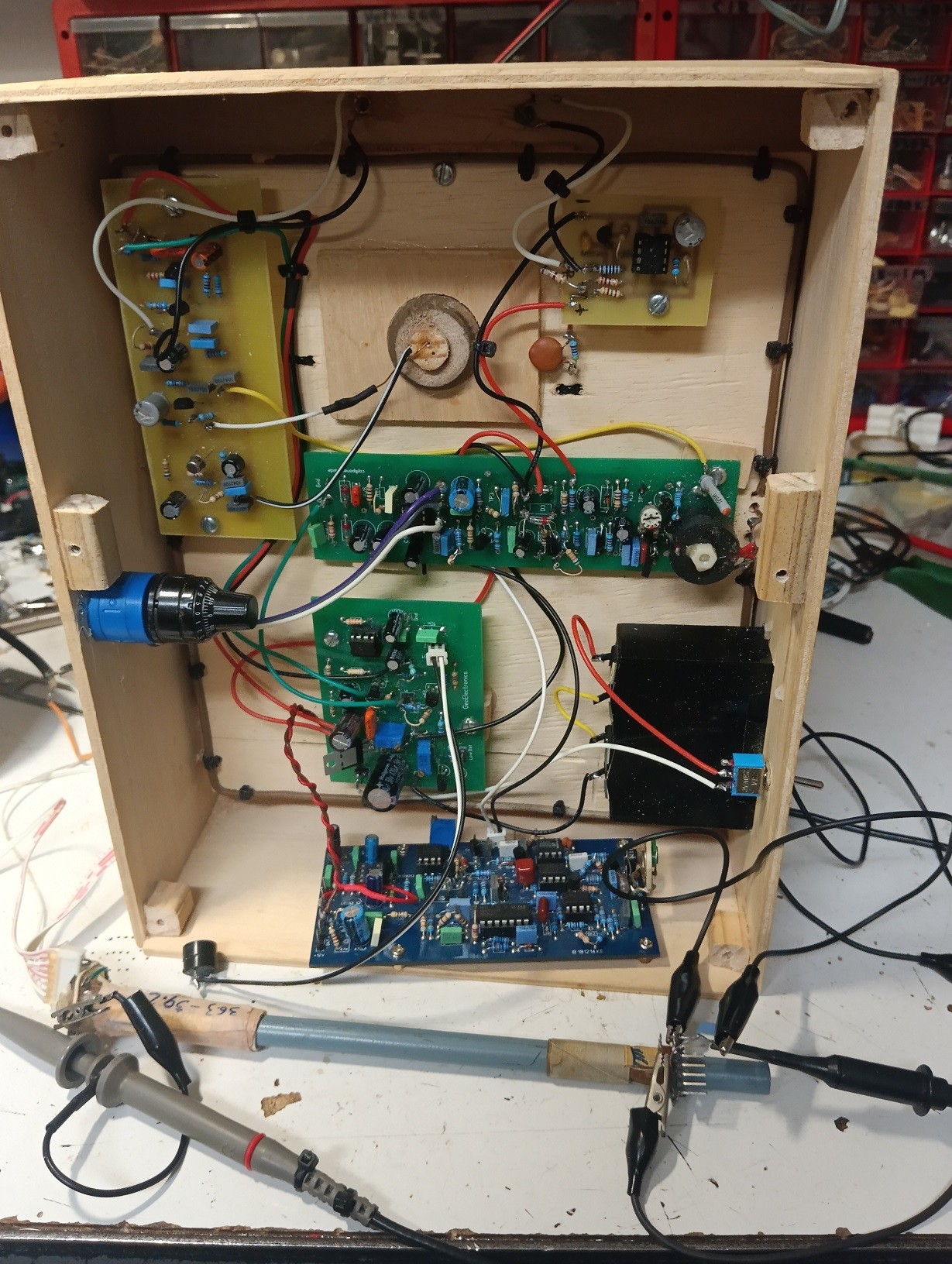

The new lrl is complete.
Now time for fine tuning and after it when the weather goes hot, time for T.H...
Regards
Attached FilesGeoComment
-
-

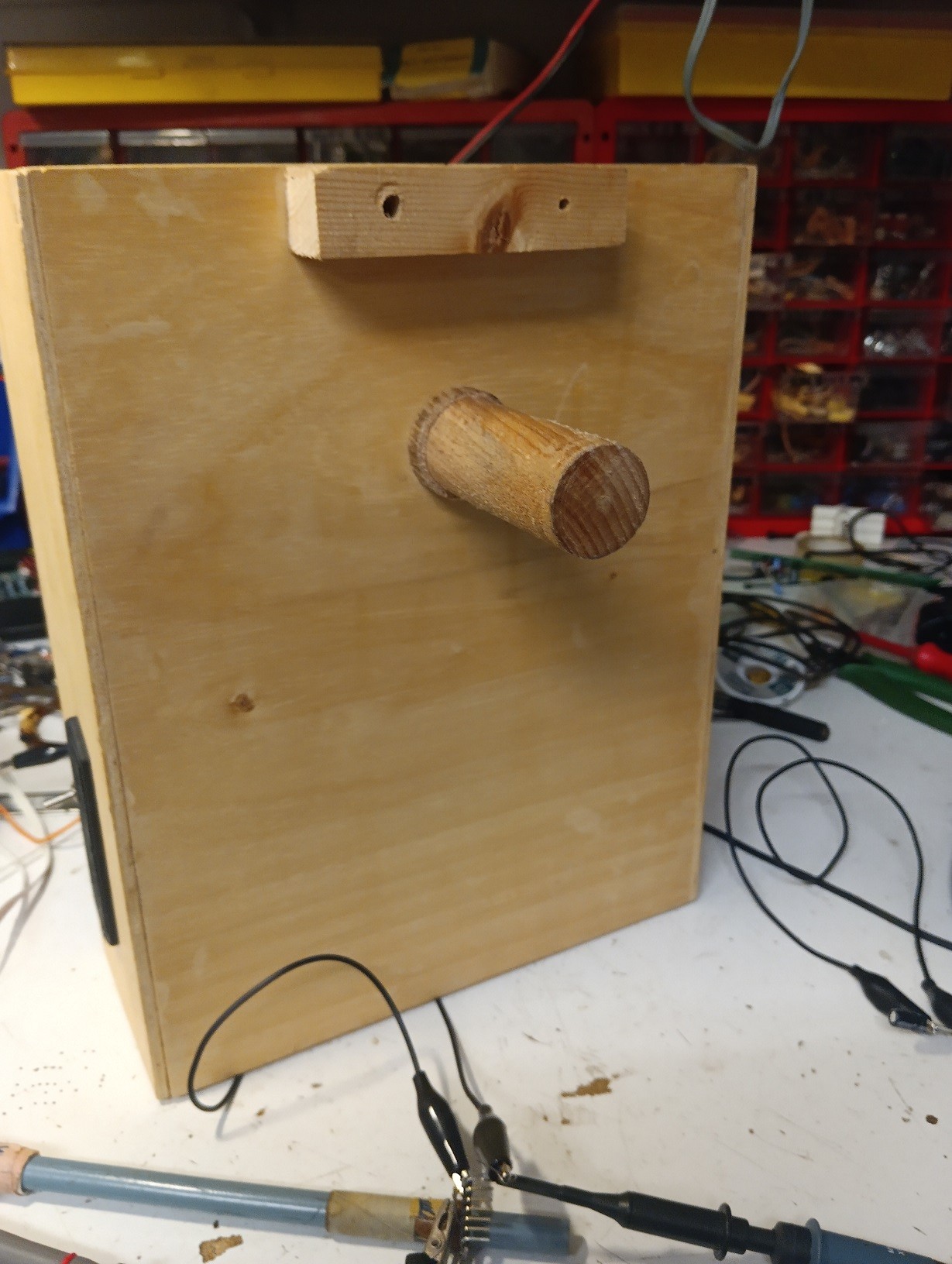

another one photo from front side
GeoComment
-
Nice work Mr Geo Good luckComment
-
Thank u...
GeoComment
-
I have a question regarding of my LRL , results which are a bit strange.
I have two magnetic receivers with the same antenna (10 cm ferrite rod).
The first receiver reacts north-south.
The second receiver reacts east-west.
and all in the same place
How can this phenomenon be explained ?Comment
-
About all ferrites (99.9%) reacts to horizons. Decrease a bit the sensitivity and u are ok. I have found only 3...4 ferrites that did n't reacts to horizons
Why in the same place???? because there the magnetic field for many reasons is stronger.GeoComment
-
Thank you for your answer Mr Geo , I would like to know where to find these ferrites ?Comment
-
I don't know. The ferrites i found was inside old radios, who knows the material of them.
But u must know that i have check many ferrites, near to one thousant and i found only 3...4,GeoComment
-
I understand what type it is, and its advantage is that it is not sensitive to the horizon, which gives us the possibility of adding amplification.
I'm i right ?Comment
-
I don't know the type. Turns of coil at radios was standard for AM so the ferrites had about same permability as all the other radio ferrites.
Now what is happening.... really i dpn't know.GeoComment
-
IS IT THE GREY FERRIT ROD ON PICTURE ?Comment
-
Yes, this is one... On this ferrite the grey colour is not a plastic cover but paint.GeoComment
