Mineoro 2-Box -- 492 feet range?

[Esteban]

Esteban, I think the IR work in conjunction with the IF wide bandwidth of the coil as a receving enhancer. I think I know what he had in mind. I still think that with another winding configuration for the coil there could be an improvement. I have several oscilator circuits at disposal which I could include the timer and try using another winding configuration. Do you allow me to do that if I have time?

Also I think I may know where this patent is.

Regards.

And this unbalances the equilibrium.

[Esteban]

Hi Esteban,

Are you saying that this device will not work as a medium range locator if the IR circuit is not included?

Can work, but IR helps a lot.

[michael]

Be patient. Morgan has only posted 2 of the 6 circuits so far. Perhaps, after that, we can get a translation.
Anyway, all the resistor values are missing.

OK, Man, good work, very nice. our eyes is on your abilities to translate it to a usable and brief form. now I'm somehow confused that surely some others are so.
again especial thanks for Morgan, Esteban and thanks for other diligents; Qiaozhi, Max. god bless you all for your efforts.
If all details be reflected exact right and be combined with your efforts will become a great unforgettable memento from makers.

[Morgan]

A lot of circuits,big confusion...

OK, Man, good work, very nice. our eyes is on your abilities to translate it to a usable and brief form. now I'm somehow confused that surely some others are so.
again especial thanks for Morgan, Esteban and thanks for other diligents; Qiaozhi, Max. god bless you all for your efforts.
If all details be reflected exact right and be combined with your efforts will become a great unforgettable memento from makers.

[Morgan]

circuits 4,5,6...

OK, Man, good work, very nice. our eyes is on your abilities to translate it to a usable and brief form. now I'm somehow confused that surely some others are so.
again especial thanks for Morgan, Esteban and thanks for other diligents; Qiaozhi, Max. god bless you all for your efforts.
If all details be reflected exact right and be combined with your efforts will become a great unforgettable memento from makers.

Before was 1,2,3,now its 4,5,6.

[Morgan]

Resistors

Hi Morgan,

Thanks - so that's what it means.
R13 = 470 ohms, 5% tolerance.

Now - with circuit #2:
R2 = 82k, R3 = 27k, R5 = 12k, etc.
But - R1 has 5 colours (not including gold, which is the tolerance) and R4 only has 2 colours. Please can you recheck these? Either 3 or 4 bands + tolerance is normal.

Important note:
R1(circuit2)
R5(circuit3)
R1(circuit6)
are the same(red,brown,red,black,white,golden)

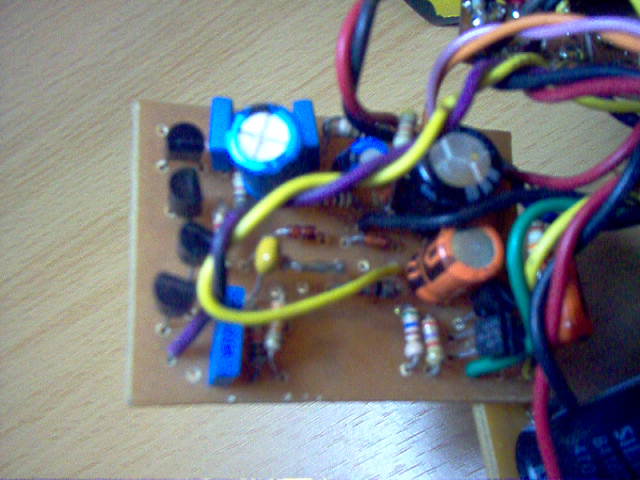

You can see one of them in the center of this photo.

[Morgan]

Resistors

PCB2 values.
R4 to be confirmed.
****************
PCB nº2

C1 1nF+6n8
C2 1nf + 1n8
C3 10nF
C4 10nF
C5 10nF
R1 …. (2120 ?
R2 82k
T1 BC558
T2 BC547
C6 100uF
C7 47nF
R3 27k
C8 22nF
C9 100uF
R4 1R
C10 100nF (?)
R5 12k
D1 1N4148
R6 2k7
T3 BC558
T4 BC548
R7 150R
R8 12k
C11 3n3
R9 1k
C12 1nF
R10 1k
R11 100k
R12 12k
R13 470r
R14 22R
R15 100k
R16 8k2

********************

Hello Fred,i already put some corrections about resistors in PCB 2,3,6.
Unfortunly i dont have permition to open the antenna,but i think if we have some genius here,we can build and put to work this device.
I saw carefuly the Antenna and didnt find any Infra Red,maybe its inside...

[Fred]

I hope esteban can help about the "antenna".

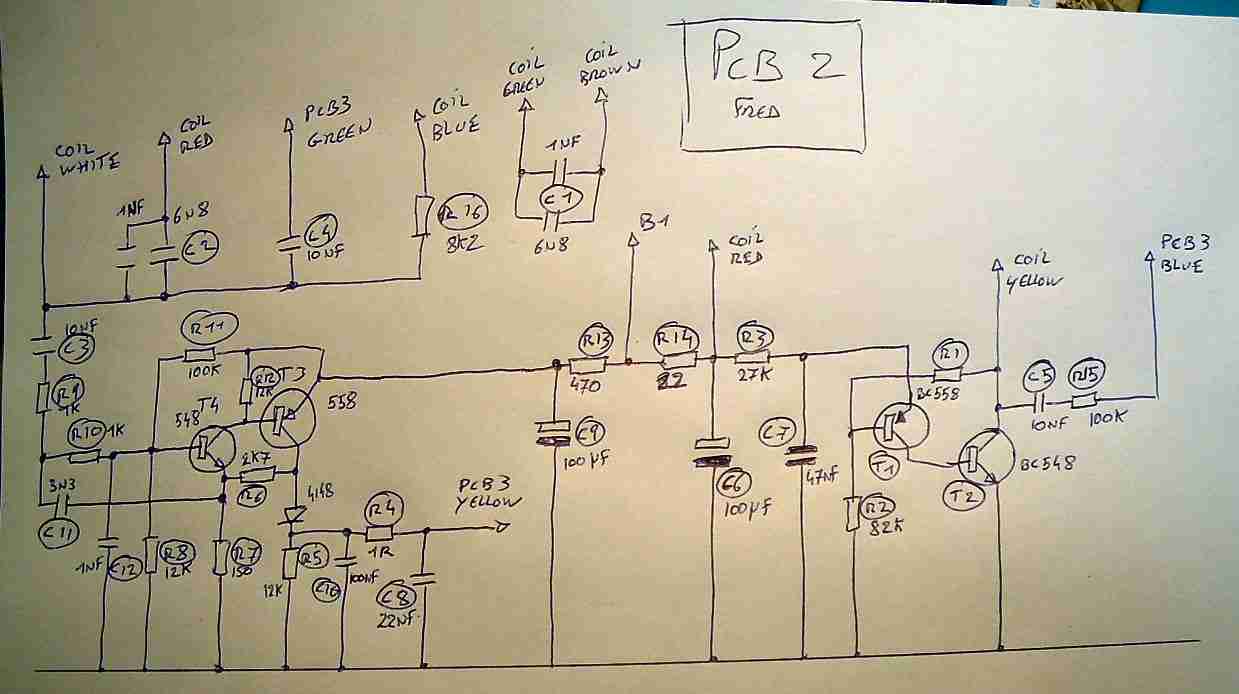

Here is the PCB2 reverse-engineered.It may contain errors of course.
Regards,
Fred.

[detectoman]

max, you certified me?

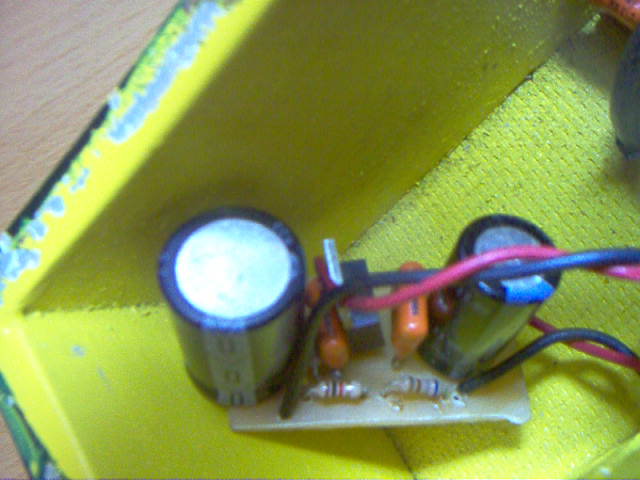

circuit 1 regulator

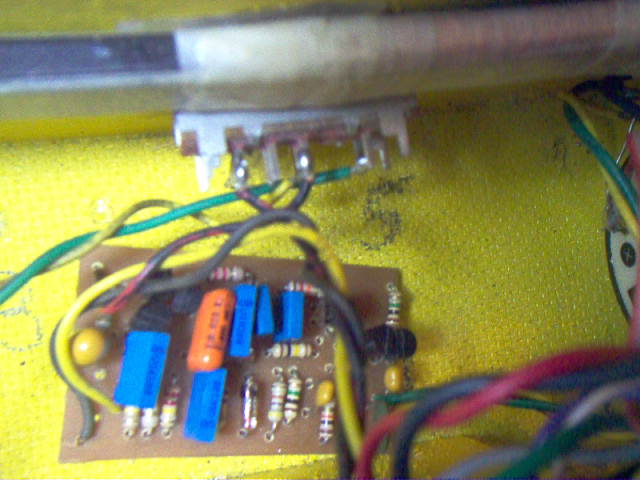

circuit 2 modulation and filters?

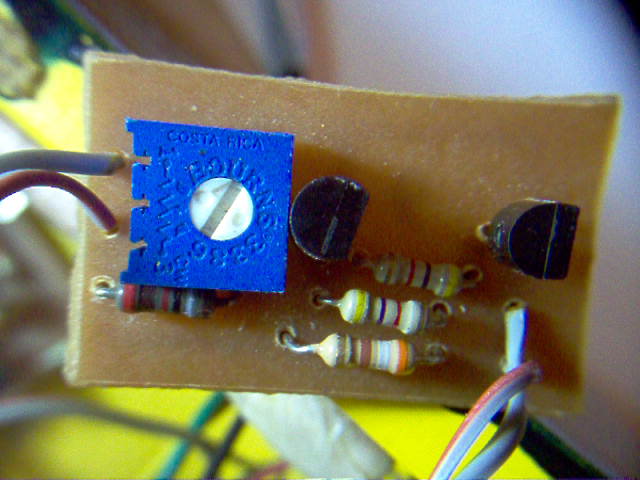

circuit 3 amplifier?

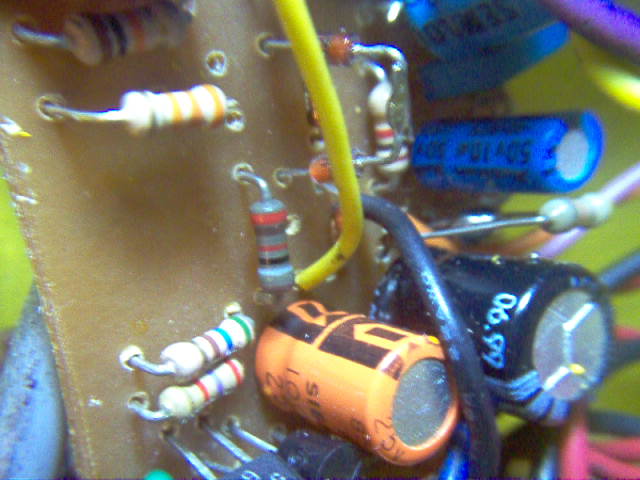

circuit 4 sound tac tac

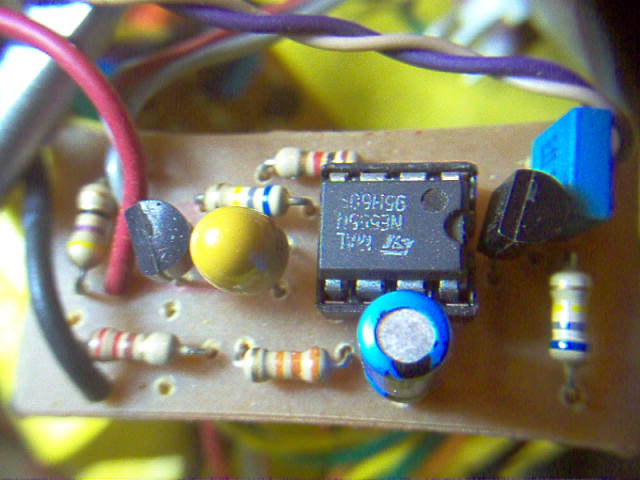

circuit 5 preamplifier?

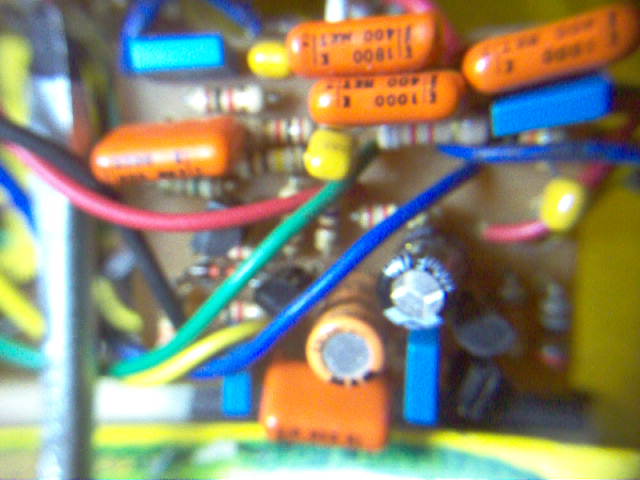

circuit 6 oscilator

apologies my bad english
hups
detectoman

[Qiaozhi]

Important note:
R1(circuit2)
R5(circuit3)
R1(circuit6)
are the same(red,brown,red,black,white,golden)
You can see one of them in the center of this photo.[ATTACH]3701[/ATTACH]

Hi Morgan,

Please could you make an in-circuit resistance measurement of this resistor? It's probably a 2.12K resistor. This particular colour coding is unknown to me.

[Qiaozhi]

Hello Fred,i already put some corrections about resistors in PCB 2,3,6.
Unfortunly i dont have permition to open the antenna,but i think if we have some genius here,we can build and put to work this device.
I saw carefuly the Antenna and didnt find any Infra Red,maybe its inside...

Hi Morgan,

Please could you also check the connectivity of the wiring to the antenna, i.e. what is the resistance measurement between the different wires?

[Qiaozhi]

I hope esteban can help about the "antenna".

Here is the PCB2 reverse-engineered.It may contain errors of course.
Regards,
Fred.

I have completed the reverse-engineering of circuit #5, but some visitors are coming to my home today. Hopefully I can post the result in a day or two. So far I cannot see any evidence of a 7kV generator. It looks more like a receiver to me.

Morgan - one more request -> please could you also do a connectivity test on the ferrite cores. i.e. what are the resistances between the wires that go to the coils?

[hung]

And this unbalances the equilibrium.

What equilibrium?

[hung]

LRL Pistoldetektor circuit 1[ATTACH]3673[/ATTACH]

[ATTACH]3674[/ATTACH]

Hummm...

Clue#1: Sonalarme S3 30VIC 2.8Kz transducer.

[hung]

Clue#2: Some EPCOS electrolytic capacitors.
