Mineoro 2-Box -- 492 feet range?

[roberts]

O.K. Both of you are right, Morgan did a job - it is true.
But i dont need to build it, to see it is bogus. For what, the world, i have my ee degrees??? For what i spend so many years in this bussiness???
It is to simple device to have any doubts in its accuracy. It is bogus, period.
But it is your choice, buil it if you want. God bless your good will!

[putrechigi]

and now???

Hi Morgan....Max.....Qiaozi.
Thanks, very good work. Congratulation
But we need and the rest.......... The head.
What is inside the head (mayby 2 coils..... how many turns??? )
How many turns are on the ferrite???
Without the head we can't do anything.
Regards

HI geo Learn from morgan to be serious!!!

Without malice Happy Christmas to all

[putrechigi]

Hi,
this is pcb1 schematic and my calculation gives exactly 9volts output for it: so at middle of battery voltage when they are at full charge.

So know we know that circuit works at 9V stabilized supply.

Kind regards,
Max

Hello everyone (max) someone could summarize all schemes with a more graphic 'clear and understandable (as in this figure) who is not' electronic guru thanks and happy holidays

[putrechigi]

hi at hall

Hi,
this is pcb1 schematic and my calculation gives exactly 9volts output for it: so at middle of battery voltage when they are at full charge.

So know we know that circuit works at 9V stabilized supply.

Kind regards,
Max

Hello everyone (max) someone could summarize all schemes with a more graphic 'clear and understandable (as in this figure) who is not' electronic guru thanks and happy holidays

[Qiaozhi]

Circuit #3

Unless I'm mistaken, no-one has yet reverse-engineered Circuit #3.
Is anyone in the process of doing this?

So far, here's what I think we have:

1. Regulated power supply.
2. TR circuit for front-mounted coil.
3. - TBC -
4. Audio stage.
5. Receiver circuit connected to ferrites.
6. LED driver.

Once we have Circuit #3, then we can construct a block diagram showing the interconnecting wires ... and , by the way, can we do this in English?
After that we can fill in the detail, and start construction.

[Esteban]

Morgan and Esteban, Thank you for your big,great job to let us have the schematic.
Morgan, man! now you did this favor, why don't do as in best way?
fulfill your favor, I'm really unfamiliar to this language, what's the reason not put in English? please take a way people like me, can use it.
another thing; all these consist all the details of circuits? on the other hand is exact what you made and got satisfying results?

For my part, thanks, but Morgan is who do the "job", not me.

[Esteban]

Hi Roberts,

The process we are going through is called "due diligence!.
At the moment we cannot rule out this device as BOGUS, unless we test it ourselves. For me, it's more of a interesting reverse-engineering exercise. No doubt this device does something - interference locator? - but we need to check this ourselves. Even at this stage we can see that we've been fed some misleading information. For example - where is this 7KV generator? Circuit #5 appears to be some sort of DC receiver. And where is the IR circuit? So far it's starting to look like a more sophisticated version of the Gold Gun.

You should be behind us in this exercise. This project is the closest we have ever come to "understanding" these LRL claims. Although, to be fair, this is claimed to be a medium-range device.
Don't forget - we're also skeptics!

Interference locator? Any detector can catch interference and produce it. Wich is your real point? Bogus? Isn't here 7 Kv generator? Where is the IR? Can exist modification of this pistol posted by Morgan? More sophisticated version of Gold Gun? As I see nobody believe in the Morgan's experience.

[Fred]

Hi Roberts,
Don't forget - we're also skeptics!

Absolutely.Skeptics, but with an open mind.

Hi,
Ok... this seems really clear too.
It's threshold detector and led driver part as I guessed.
So if color is white we know now that it's 19K... then I think that resistor is that way (precision and low ppm/°K coeff) cause have to mantain threshold level at a knowing setting (turn) of trimpot (maybe to ease tuning of the circuit).
Also I strongly think that the low temp. coeff. is required to avoid thermal variations of threshold level (so have sense to me).
PS: from what I see it's kind of low battery alarm.
Kind regards,
Max

Yes, battery tester with no doubt.But the 19k resistor is just here because it was at hand i believe.Almost any value work here, the adjustable pot is the weakest point here and the precision of the resistor is probably of no use-in my opinion-

O.K. Both of you are right, Morgan did a job - it is true.
But i dont need to build it, to see it is bogus.

Too soon to say.Esteban was saying there is IR inside-aparently there is not.He was saying the ferrite was for HV-aparently it is not.I dont think there is any HV in the head, unless there is a PCB inside, because the transistors are all low voltage, BC548 CE voltage is around 60V if i remember well.

Unless I'm mistaken, no-one has yet reverse-engineered Circuit #3.Is anyone in the process of doing this?

I was, but then i stopped ,missing some info and get bored , i wanted to finish all i could on my delta pulse-Now morgan has posted the info,i will continue later today.
What would be usefull, beside coil info, is detailed information from Morgan of the device behaviour in presence os metals.

Regards!,
Fred.

[Qiaozhi]

Interference locator? Any detector can catch interference and produce it. Wich is your real point? Bogus? Isn't here 7 Kv generator? Where is the IR? Can exist modification of this pistol posted by Morgan? More sophisticated version of Gold Gun? As I see nobody believe in the Morgan's experience.

Hi Esteban,

Please don't misunderstand. I was replying to Roberts, because he was dismissing this pistol detector out-of-hand, without any investigation. I am absolutely certain that Morgan has reported his experience in an honest fashion, and that is why I am interested to reverse-engineer this design. As I said earlier - it clearly does "something". What that "something" is, has yet to be determined by completing this project. The main reason for Morgan supplying these details at all, is that he wants to have a copy of this detector for himself. With your assistance, I think we can achieve this.

[Max]

Hi,

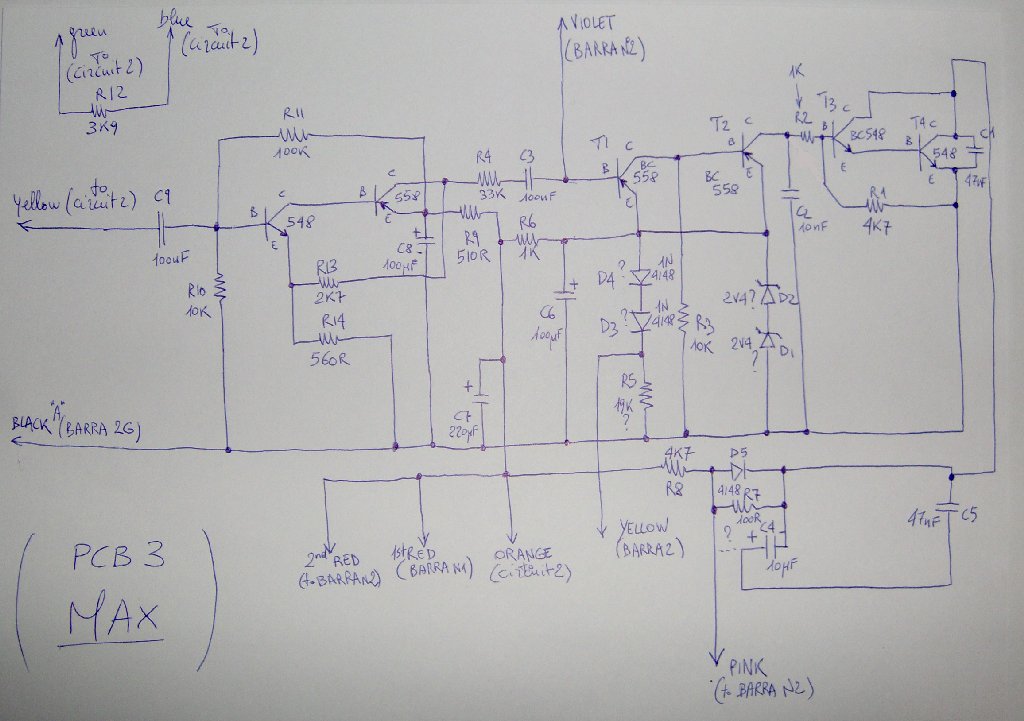

I think here we are... about boards.

Look... there could be mistakes. Also... there are "?" where things aren't clear to me... for example connection of C4 positive lead with R7 and D5... from picture of PCB seems there is connection... but maybe is better make another check; I've used dashed line there.

Same for some components value.

Sorry for the ugly schematic but have no time at now to make better.

Kind regards,
Max

[Qiaozhi]

Hi Morgan,

Do you have access to an oscilloscope or a multimeter that has a frequency range?
If so, please can you probe around on the connections that go to the front-mounted coil, and post the measurements here? I'm particularly interested in the frequency of operation.
If you have time, please can you do the same for the ferrite coils? Also, is there any evidence of a high voltage (~7KV) being generated there?

Thanks.

[detectoman]

hello guys
for my, these module,s ferrite and coil, are tipe inovated dual adaptation bfo: r.f ferrite input one discriminated balanced signal- coil plural dc low tension magnetic induction emision, ( balanced ) ( fhinished whit very filtred on capacitors) hugg
i am experience in early stuff bfo,s this like how hig sophistiqued circuit
very difficultous stabilize balance in this stuff in manner, nedded cientific man builders jajaja
i am confused for complicated circuit of diverse lines of front coil
the enormous difficulty is when balance both modules

aclaration i am novice in electronics, and english, jajajaja whitout studies, is very simplest my opinion
look these prototipe how personal experimental aplications whit sophistications
advanced little and modern mini circuits
free of ics amplifiers why?
is modern and antique jjajajajaja

apologies for my bad english hups
electronic hoobyst detectioman

[Morgan]

LRL behaviour

Absolutely.Skeptics, but with an open mind.


Yes, battery tester with no doubt.But the 19k resistor is just here because it was at hand i believe.Almost any value work here, the adjustable pot is the weakest point here and the precision of the resistor is probably of no use-in my opinion-


Too soon to say.Esteban was saying there is IR inside-aparently there is not.He was saying the ferrite was for HV-aparently it is not.I dont think there is any HV in the head, unless there is a PCB inside, because the transistors are all low voltage, BC548 CE voltage is around 60V if i remember well.



I was, but then i stopped ,missing some info and get bored , i wanted to finish all i could on my delta pulse-Now morgan has posted the info,i will continue later today.
What would be usefull, beside coil info, is detailed information from Morgan of the device behaviour in presence os metals.

Regards!,
Fred.

Hello

This device,not work very well in wet ground but works better in dry soil where its possible to find aluminium can 5m away and it was 40cm deep.After dig this aluminium can,i buried again and get beep only 1m away,so it happens the same with 0,5gr gold nugget,i get signal 2m away from antenna and today i buried 10cm into soil this little nugget and get signal only with antenna near the spot.So i believe in all Esteban information about energy field or eletromagnetic field around long time ago buried conductive metals...
Anyway,considering size of this antenna only 11cm diameter,with device very well adjusted,i have in air test distances superior to any MD that i know,i even cant adjust device at home,i must do it out side or it will be not sensitive because presence of metals near antenna.
Some curious test:
In air tests (using 3 position switch to normal search) reject only iron ,nail size,and its extremly sensitive to gold,much more than SD2200D!!!
Much better than russian prototipe( long range detector) who gets a lot of iron signals far away and with interferences because of power lines,with this detecktorpistol i never get iron targets when search in the fields.Unfortunly this one like very much aluminium and old batteries buried in ground maybe for some years,but he also likes GOLD!!!
So,my dear friends,even if we cant put this device working like LRL ,anyway if we put him to work as MD we have built an very sensitive device for GOLD HUNTING.And if we put biger coil,maybe we built some kind of LRL...
As i tell before,i´m a frustrating Mineoro client,i have DC2008 for sale,and i tell bad things about LRL Mineoro,i tell the true,you think this help me to sell this DC2008 device? No,but i like to tell the true about what i have experienced!!!
For all people in this forum,BELIEVE IT OR NOT,IT DOESNT MATTER FOR ME !!!
Merry Chrystmas and happy new year for everybody

[Max]

Hello

This device,not work very well in wet ground but works better in dry soil where its possible to find aluminium can 5m away and it was 40cm deep.After dig this aluminium can,i buried again and get beep only 1m away,so it happens the same with 0,5gr gold nugget,i get signal 2m away from antenna and today i buried 10cm into soil this little nugget and get signal only with antenna near the spot.So i believe in all Esteban information about energy field or eletromagnetic field around long time ago buried conductive metals...
Anyway,considering size of this antenna only 11cm diameter,with device very well adjusted,i have in air test distances superior to any MD that i know,i even cant adjust device at home,i must do it out side or it will be not sensitive because presence of metals near antenna.
Some curious test:
In air tests (using 3 position switch to normal search) reject only iron ,nail size,and its extremly sensitive to gold,much more than SD2200D!!!
Much better than russian prototipe( long range detector) who gets a lot of iron signals far away and with interferences because of power lines,with this detecktorpistol i never get iron targets when search in the fields.Unfortunly this one like very much aluminium and old batteries buried in ground maybe for some years,but he also likes GOLD!!!
So,my dear friends,even if we cant put this device working like LRL ,anyway if we put him to work as MD we have built an very sensitive device for GOLD HUNTING.And if we put biger coil,maybe we built some kind of LRL...
As i tell before,i´m a frustrating Mineoro client,i have DC2008 for sale,and i tell bad things about LRL Mineoro,i tell the true,you think this help me to sell this DC2008 device? No,but i like to tell the true about what i have experienced!!!
For all people in this forum,BELIEVE IT OR NOT,IT DOESNT MATTER FOR ME !!!
Merry Chrystmas and happy new year for everybody

Hi Morgan,
I belive your words about the aluminium can and all the rest. You have done really good work with reverse engineering of device and that's pretty cool we can see now complete schematic of its boards. We can make an idea of operations but some pieces are missed till now... expecially about coil arrangements and composition. I think that if there is really IR emitter it will be inside the round thing on top of device; I guess also there is one or more round coils there. But maybe it isn't ; personally I think high voltage generator is not present in this device cause the absence of shields show us that cannot be so: I'm sure of that. I cannot see any suitable HV generation process inside or outside device in relation to targets.

Probably device is a kind of BFO with directive transmitter and coaxial receiver ; usually BFOs aren't any good but maybe this arrangement of pistol make it find cans meters away... so well after normal BFO ranges.

But we need some more bits to get the picture and replicate the device to test ourself. I hope you'll continue posting details of device , expecially enclosed things we haven't seen till now.

Merry Christmas,
Max

[Morgan]

Antenna LRL

Hi Morgan,

Do you have access to an oscilloscope or a multimeter that has a frequency range?
If so, please can you probe around on the connections that go to the front-mounted coil, and post the measurements here? I'm particularly interested in the frequency of operation.
If you have time, please can you do the same for the ferrite coils? Also, is there any evidence of a high voltage (~7KV) being generated there?

Thanks.

Hello

Considering my very little knolenge about electronics,i make big sacrifice to put schematics here.Maybe there are some errors but i will chek everythyng carefuly before give LRL to my friend .I will meet with him during new year(he lives far away from me).
Until now i make long time ago some useless BFO detectors,from electronics magazins,some i put to work others not,so my knolenge about electronics is limited.Anyway i want to make a copy of this LRL who works,its not to produce in hig quantityes,i dont want to buy one of this,even the same,from Alonso,because i know many things,its possible to make the good and the gizmo,I already was informed during this week of other things...I receive anonymous letter from Paraguay,i dont know were they get my E-mail.
So,no problem,´FOR PEOPLE IN PARAGUAY ONT WORRY I DIDNT OPEN THE ANTENNA OR FERRIT!!!
I´m positive about Esteban knoledge to give us some lights about This little hot antenna.

Kind regards
