Mineoro 2-Box -- 492 feet range?

[Fred]

Hi Morgan,
thanks for info.
My skepticism goes to the device tecnhology explanations, not about you

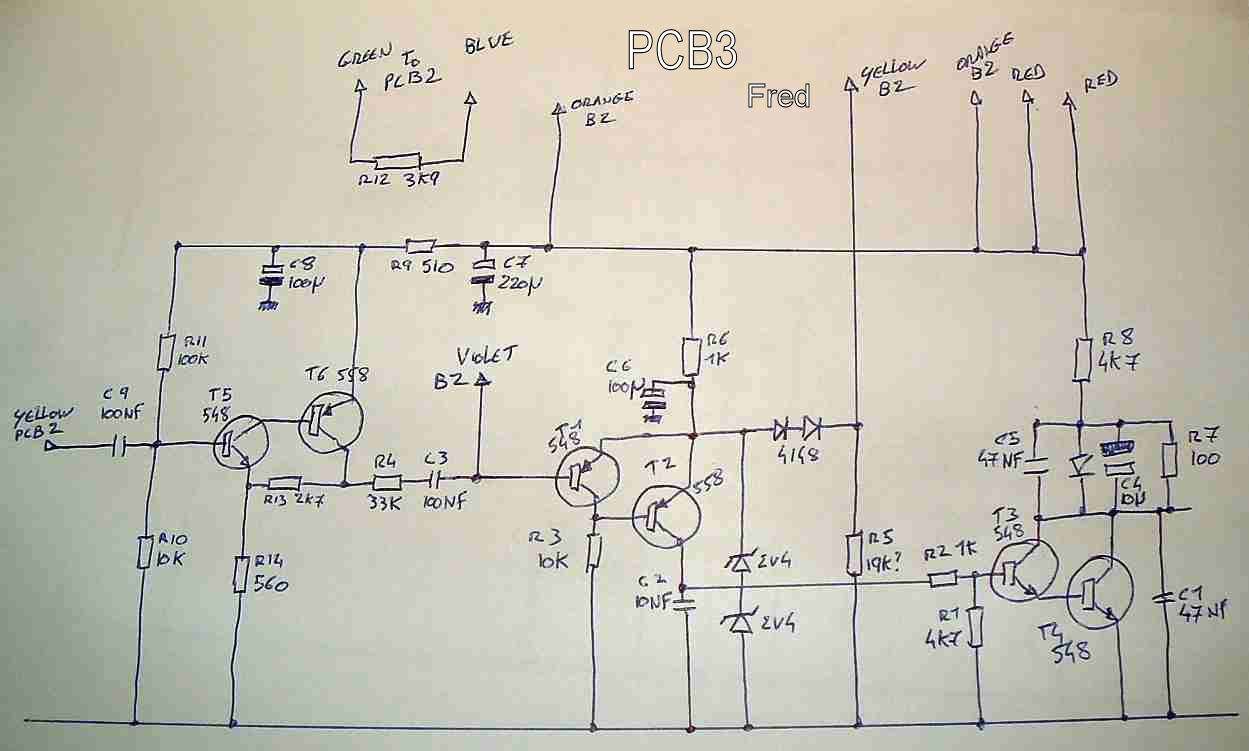

Here goes the last circuit , PCB3.
I think there is small mistakes:
-near T4 collector a connection is probably missing, a wire maybe?
-the diode in parallel to c4/r7 etc has no reference

Thanks!
PS: i really dont see the point of the presence of R12 on thi PCB instead of PCB2....more wires for nothing?
One more thing: i think we can name the builder "Mr.Darlington" :-)

Regards.
Fred.

[Morgan]

Misterious device

Hi Morgan,
I belive your words about the aluminium can and all the rest. You have done really good work with reverse engineering of device and that's pretty cool we can see now complete schematic of its boards. We can make an idea of operations but some pieces are missed till now... expecially about coil arrangements and composition. I think that if there is really IR emitter it will be inside the round thing on top of device; I guess also there is one or more round coils there. But maybe it isn't ; personally I think high voltage generator is not present in this device cause the absence of shields show us that cannot be so: I'm sure of that. I cannot see any suitable HV generation process inside or outside device in relation to targets.

Probably device is a kind of BFO with directive transmitter and coaxial receiver ; usually BFOs aren't any good but maybe this arrangement of pistol make it find cans meters away... so well after normal BFO ranges.

But we need some more bits to get the picture and replicate the device to test ourself. I hope you'll continue posting details of device , expecially enclosed things we haven't seen till now.

Merry Christmas,
Max

Hello
When this device is working and detect something,its possible to ear sometimes the strange noise like when we have a AC transformer working with noise,maybe this comes from inside Antenna?...I ear some noise of vibration inside this device.
3 of the 7 wires who goes into Antenna,these 3 are for sure a search loop (Red,white,and the other named antenna in circ.2,its shielded cable,like in Faraday shied used for old BFO MD´s)
MY ADVICE : MAYBE IF THERE IS NEW MACHINES TIPE DETEKTORPISTOL FOR SALE,DONT BUY IT,MAYBE ITS MORE GIZMOS,USING THE REPORTS I MADE FOR THIS ONE WHO WORKS !!!

Kind regards

[roberts]

Hello

This device,not work very well in wet ground but works better in dry soil where its possible to find aluminium can 5m away and it was 40cm deep.After dig this aluminium can,i buried again and get beep only 1m away,so it happens the same with 0,5gr gold nugget,i get signal 2m away from antenna and today i buried 10cm into soil this little nugget and get signal only with antenna near the spot.So i believe in all Esteban information about energy field or eletromagnetic field around long time ago buried conductive metals...
Anyway,considering size of this antenna only 11cm diameter,with device very well adjusted,i have in air test distances superior to any MD that i know,i even cant adjust device at home,i must do it out side or it will be not sensitive because presence of metals near antenna.
Some curious test:
In air tests (using 3 position switch to normal search) reject only iron ,nail size,and its extremly sensitive to gold,much more than SD2200D!!!
Much better than russian prototipe( long range detector) who gets a lot of iron signals far away and with interferences because of power lines,with this detecktorpistol i never get iron targets when search in the fields.Unfortunly this one like very much aluminium and old batteries buried in ground maybe for some years,but he also likes GOLD!!!
So,my dear friends,even if we cant put this device working like LRL ,anyway if we put him to work as MD we have built an very sensitive device for GOLD HUNTING.And if we put biger coil,maybe we built some kind of LRL...
As i tell before,i´m a frustrating Mineoro client,i have DC2008 for sale,and i tell bad things about LRL Mineoro,i tell the true,you think this help me to sell this DC2008 device? No,but i like to tell the true about what i have experienced!!!
For all people in this forum,BELIEVE IT OR NOT,IT DOESNT MATTER FOR ME !!!
Merry Chrystmas and happy new year for everybody

Hey! This is in a way to much!
And dont worry, this will be my last post here. I just cant stand such nonsences any more.
I DONT BELEIVE A WORD TO YOU. SIMPLY, COSE I DO KNOW FOR SURE THAT YOU ARE SPEAKING RUBBISH HERE!


"Aluminimum can ...5 m away..." !?!?! With device you posted here???
B.S. ...Mega B.S.....Terra B.S......!!!!
NONSENCE! NONSENCE! NONSENCE!

I am not tacken aback with you nonsences here, no! I am really tacken aback with other peoples good will to pay you attention, to listen you!!!????
Peoples like Max and Quiaozhi?????
No wonder Esteban is here with his attitude...!
BUT YES, IT IS WONDER THAT MAX's AND QUIAOZHI's DO TAKE A PART IN THIS HUGE B.S. ????

Good bye world! Good bye sanity! Good bye common sence! Good bye Forum!

Finally "they" won!? I lost...

[detectoman]

these seems, how combination; bfos - radio filtred selectioned wave
why very much lines in the coil?

very ingenious

best regards these days, noooooooooot drink not drive
bay zzzzzzzzzummmmmmm deteccion circuitadict, detectoman

[Nihil Roma Maius]

Mr. Morgan

Please, don't open the coils. You have done a great job, but... there are many people who wish convert this in a business based on investigation of others. I read the thread and found that the device has been patented in Brazil.


Regards

Nihil Roma Maius

[Palamedes]

patented or ...

Mr. Morgan

Please, don't open the coils. You have done a great job, but... there are many people who wish convert this in a business based on investigation of others. I read the thread and found that the device has been patented in Brazil.

Good news..
Nihil you doubtlessly do not know the purpose of patent office..
If this circuit is patented - then it is also protected by international law.
No way to convert it into ''buisness'' without paying the fee to original investigators.
Please stop malesting Morgan..and better upload here the patent - if you have one...

[Nihil Roma Maius]

Good news..
Nihil you doubtlessly do not know the purpose of patent office..
If this circuit is patented - then it is also protected by international law.
No way to convert it into ''buisness'' without paying the fee to original investigators.
Please stop malesting Morgan..and better upload here the patent - if you have one...

Sure? Who copy and later pay by it? You? Morgan? Qiaozhi? Major MD industries? The Chineses?

Best regards

Nihil Roma Maius

[Qiaozhi]

Hey! This is in a way to much!
And dont worry, this will be my last post here. I just cant stand such nonsences any more.
I DONT BELEIVE A WORD TO YOU. SIMPLY, COSE I DO KNOW FOR SURE THAT YOU ARE SPEAKING RUBBISH HERE!


"Aluminimum can ...5 m away..." !?!?! With device you posted here???
B.S. ...Mega B.S.....Terra B.S......!!!!
NONSENCE! NONSENCE! NONSENCE!

I am not tacken aback with you nonsences here, no! I am really tacken aback with other peoples good will to pay you attention, to listen you!!!????
Peoples like Max and Quiaozhi?????
No wonder Esteban is here with his attitude...!
BUT YES, IT IS WONDER THAT MAX's AND QUIAOZHI's DO TAKE A PART IN THIS HUGE B.S. ????

Good bye world! Good bye sanity! Good bye common sence! Good bye Forum!

Finally "they" won!? I lost...

Roberts - be patient...

Remember - Silence is wisdom...

[Palamedes]

Patents..

Sure? Who copy and later pay by it? You? Morgan? Qiaozhi? Major MD industries? The Chineses?

No I'm not sure .. lots of dirty buisness here - I agree.
But you missed my point. -> If the device is really patented then it is also available freely to me, Morgan..and also chinese.

It would be nice to see the patent not guessing what does it do and painfully back-engeneering the device.
Do you have the copy of patent or patent No#?

[Nihil Roma Maius]

Never I said "I have the patent or #". Said: "I read the thread and found that the device has been patented in Brazil."

Regards

Nihil Roma Maius

[Qiaozhi]

Circuit #2

Please see attached redrawn portion of Circuit #2.

This appears to be a oscillator that generates a series of high voltage (92V) pulses every 2.5ms. The pulses look very similar to those generated by a pulse induction detector.
The front-mounted coil has been assumed to not contain any tuning capacitors. If a tuning cap is fitted, then the output pulse decay rings at the frequency defined by the LC combination. I also tried various coil values, ranging from 2.5mH to 5.9mH, and these all gave the same results.

To the left-hand side of C9, the circuit (not yet redrawn) is quite possibly the receiver section. However, it's difficult to tell exactly, because of the uncertainty of the coil configuration.

Esteban - does this make any sense to you?

Anyone else - contructive comments welcome.

[J_Player]

Never I said "I have the patent or #". Said: "I read the thread and found that the device has been patented in Brazil."

Is this device patented? Or is this just some information that was told to the people in this forum? If it is patented, then perhaps someone can produce the patent number to verify it is patented. With this patent number, we can easily see what the inventor considered to be the working part of the circuit by looking at his patent diagrams, the same as we do with patents for conventional metal detectors.

According to what we were told, negotiations are being made to produce this patented device for commercial sale to the public. If this is true, we can expect to see a cheap Chinese version that probably doesn't work as well shortly after the first commercial units are available. Is there any real danger that by understanding this device, we are causing the Chinese or other people to illegally manufacture this device in the countries where it is protected?

Best wishes,
J_P

[Fred]

Hi Morgan,
thanks for info.
I think there is small mistakes:
-near T4 collector a connection is probably missing, a wire maybe?
-the diode in parallel to c4/r7 etc has no reference
PS: i really dont see the point of the presence of R12 on thi PCB instead of PCB2....more wires for nothing?

I have made a mistaske on transistor T1,PCB3: part shown is bc548 should be 558.
Fred.

[Fred]

Max,
I was going back to search for PCB2 and i found your schematic of PCB3.So i made it for nothing ,i have missed plenty of posts.
Even found the pink wire etc.
However, i still think there is something missing at collector of T4,probably a connection...
Sorry,
Fred.

[Morgan]

Nonsense?

Hey! This is in a way to much!
And dont worry, this will be my last post here. I just cant stand such nonsences any more.
I DONT BELEIVE A WORD TO YOU. SIMPLY, COSE I DO KNOW FOR SURE THAT YOU ARE SPEAKING RUBBISH HERE!


"Aluminimum can ...5 m away..." !?!?! With device you posted here???
B.S. ...Mega B.S.....Terra B.S......!!!!
NONSENCE! NONSENCE! NONSENCE!

I am not tacken aback with you nonsences here, no! I am really tacken aback with other peoples good will to pay you attention, to listen you!!!????
Peoples like Max and Quiaozhi?????
No wonder Esteban is here with his attitude...!
BUT YES, IT IS WONDER THAT MAX's AND QUIAOZHI's DO TAKE A PART IN THIS HUGE B.S. ????

Good bye world! Good bye sanity! Good bye common sence! Good bye Forum!

Finally "they" won!? I lost...

Hello sharky

For you i keep my silence
Silence is wisdom...
